Male Stud Coupling with O-Ring - Stainless Steel Metric Parallel - DIN 2353 Compliant
Male Stud Coupling with O-Ring - Stainless Steel Metric Parallel - DIN 2353 Compliant
SKU:FIT-9b4b1b
Durable Male Stud Coupling with O-Ring for secure metric connections. DIN 2353 Compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Coupling with O-Ring - Stainless Steel Metric Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling with O-Ring - Stainless Steel Metric Parallel - DIN 2353 Compliant
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Coupling with O-Ring and Washer Thread Metric Parallel is designed for extra light-duty applications. Made of stainless steel, it ensures durability and reliability under pressure. With a tube diameter of 6.0 mm and a nominal operating pressure of 100 bar, this coupling offers secure connections. Compliant with DIN 2353 standards, it meets stringent quality requirements.

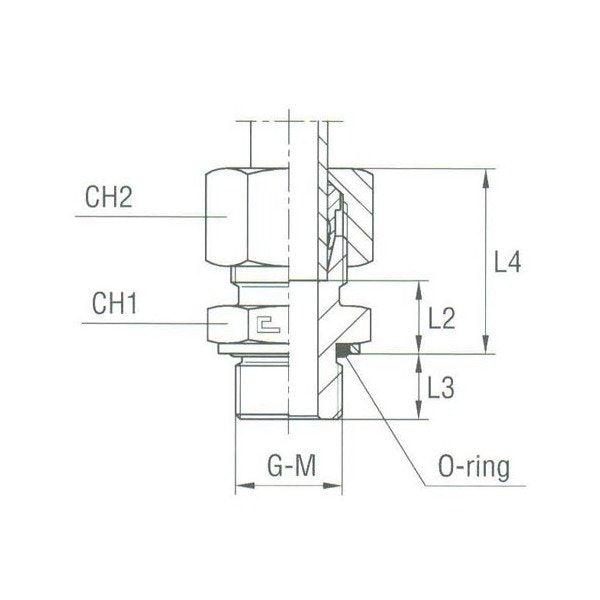

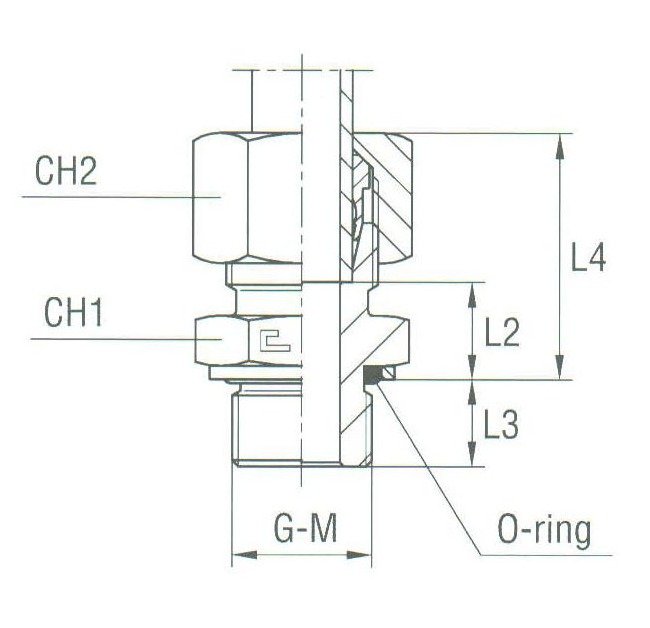

Product Specifications
Specifications Ch1
14 mm
Specifications Ch2
12 mm
Specifications L2
8.0 mm
Specifications L3
7.5 mm
Specifications L4
20 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
10x1
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Extra Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
