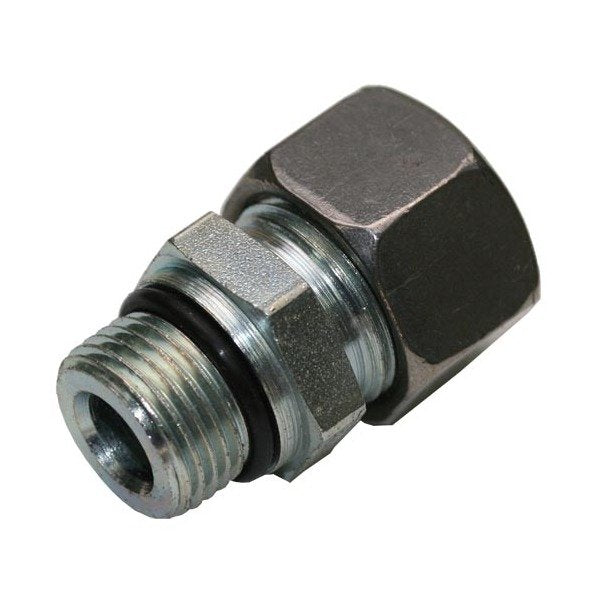

Male Stud Coupling with O-Ring Thread UNF/UN-2A - Stainless Steel, DIN 2353 Compliant

Name: Male Stud Coupling with O-Ring Thread UNF/UN-2A - Stainless Steel, DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-7f467d
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-7f467d

Heavy-duty Male Stud Coupling with O-Ring Thread UNF/UN-2A, stainless steel construction, DIN 2353 compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Coupling with O-Ring Thread UNF/UN-2A is a heavy-duty fitting crafted from durable stainless steel, ideal for applications requiring high pressure handling up to 630 bar. With precise dimensions including a 10.0 mm tube diameter and DIN 2353 compliance, this coupling ensures secure connections and reliable performance. The equipped B3 ring enhances sealing efficiency, making it a top choice for industries demanding quality and longevity.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

22 mm

Specifications D1

18.8 mm

Specifications L2

14.5 mm

Specifications L3

10 mm

Specifications L4

30.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

10.0 mm

Specifications W Thread Size

9/16-18
