Male Stud Coupling with O-Ring, Washer Thread Metric Parallel - Equipped B3 Ring
Male Stud Coupling with O-Ring, Washer Thread Metric Parallel - Equipped B3 Ring
SKU:FIT-e95a58
Durable Male Stud Coupling with O-Ring, Washer Thread Metric Parallel, perfect for high-pressure applications. DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Coupling with O-Ring, Washer Thread Metric Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Coupling with O-Ring, Washer Thread Metric Parallel - Equipped B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

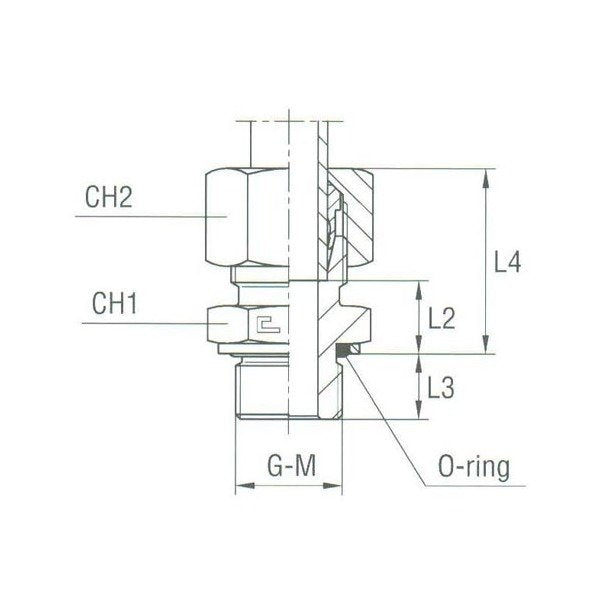

The Male Stud Coupling with O-Ring and Washer features light-duty pressure capability, constructed from durable carbon steel, with a tube diameter of 18.0 mm. This coupling is designed to handle a nominal operating pressure of 315 bar, meeting DIN 2353 standards. With precise dimensions for L2, L3, L4, CH1, and CH2, this coupling ensures a secure and leak-free connection for various metric parallel applications.
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
32 mm
Specifications L2
14.4 mm
Specifications L3
13.6 mm
Specifications L4
30.3 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
18.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread Metric Parallel
