Male Stud Hydraulic Check Valve with NPT Taper Thread and Equipped B4 Ring

Name: Male Stud Hydraulic Check Valve with NPT Taper Thread and Equipped B4 Ring
Brand: World Wide Metric, Inc.
SKU: VAL-30133d
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-30133d

Ensure reliable fluid control with Male Stud Hydraulic Check Valve. Designed for light-duty applications with 250 bar pressure, stainless steel material, and precise dimensions.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Hydraulic Check Valve with NPT Taper Thread and Equipped B4 Ring is designed for light-duty applications with a nominal operating pressure of 250 bar. Featuring a tube diameter of 10.0 mm and stainless steel construction, this valve ensures reliable performance. With precise dimensions and a pass diameter of 4 mm, it meets the stringent requirements of hydraulic systems, providing efficient fluid control and preventing backflow. This valve is a trusted choice for industries requiring precision and durability.

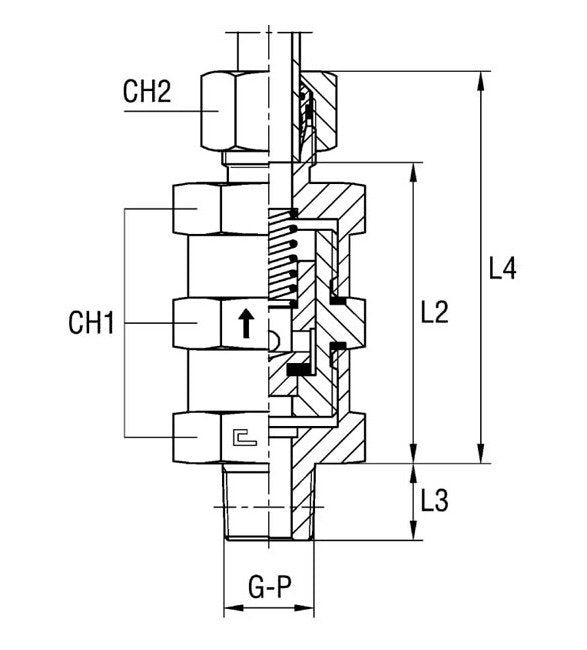

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Diameter Pass

4 mm

Specifications L2

52.0 mm

Specifications L3

15 mm

Specifications L4

66.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications P Thread Size

1/4

Specifications Tube Diameter

10.0 mm

Category 6

Male Stud Non Return Valve Thread NPT Taper

Male Stud Hydraulic Check Valve with NPT Taper Thread and Equipped B4 Ring
