Male Stud Non Return Valve 290 Bar - Carbon Steel
Male Stud Non Return Valve 290 Bar - Carbon Steel
SKU:VAL-4d9949
High-quality Male Stud Non Return Valve for hydraulic systems, pressure range 290 bar, Carbon Steel construction.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Male Stud Non Return Valve 290 Bar - Carbon Steel
$89.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve 290 Bar - Carbon Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is designed for a wide range of hydraulic applications. With a pressure range of Extra Light Duty to Heavy Duty, this valve ensures reliable performance at up to 290 bar nominal operating pressure. Made of robust Carbon Steel, it features precise dimensions and a secure thread size of 1 5/16-12, meeting stringent hydraulic system requirements.

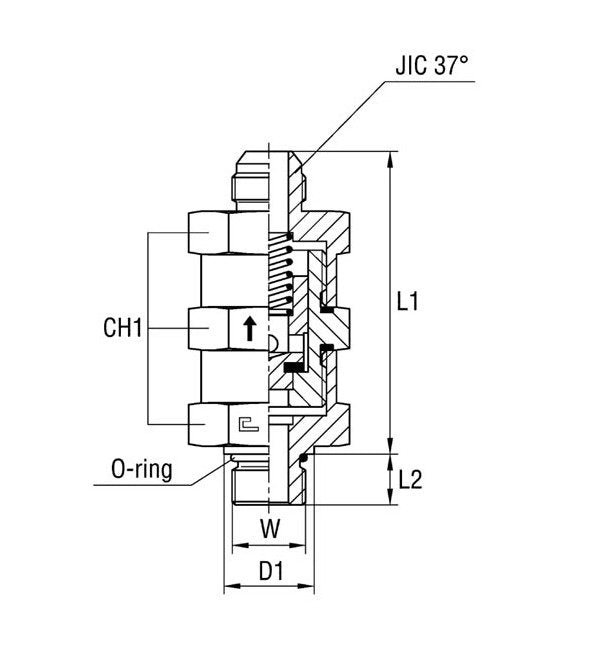

Product Specifications
Specifications Ch1
50 mm
Specifications D1
40.8 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
89.1 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/16-12
Specifications W Tube Diameter
1 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
