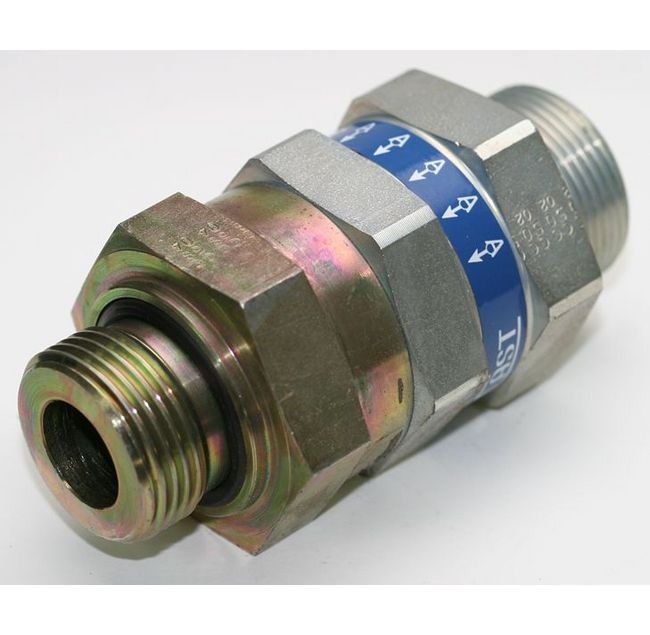

Male Stud Non Return Valve, BSP Parallel - Body Only
Male Stud Non Return Valve, BSP Parallel - Body Only
SKU:FIT-842748
Reliable Male Stud Non-Return Valve for high-pressure hydraulic systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve, BSP Parallel - Body Only
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve, BSP Parallel - Body Only
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non-Return Valve with Elastomer Seal ensures secure flow control in high-pressure hydraulic systems. Built with heavy-duty materials, it operates at a nominal pressure of 400 bar. With precise dimensions and carbon steel construction, this valve guarantees reliable performance and longevity.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L1
62.0 mm
Specifications L2
55.0 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
8.0 mm
