Male Stud Non Return Valve BSP Taper - B4 Ring, Stainless Steel
Male Stud Non Return Valve BSP Taper - B4 Ring, Stainless Steel
SKU:VAL-54616d
Durable Stainless Steel Male Stud Non Return Valve for hydraulic applications, with light-duty pressure rating of 250 bar. Reliable performance guaranteed.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Male Stud Non Return Valve BSP Taper - B4 Ring, Stainless Steel
$34.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve BSP Taper - B4 Ring, Stainless Steel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve BSP Taper with Equipped B4 Ring is designed for light-duty applications, with a nominal operating pressure of 250 bar. Crafted from high-quality stainless steel, this valve ensures durability and longevity. With a tube diameter of 15.0 mm and precise dimensions, it offers reliable performance in hydraulic systems. Meet your industrial valve needs with this dependable and efficient solution.

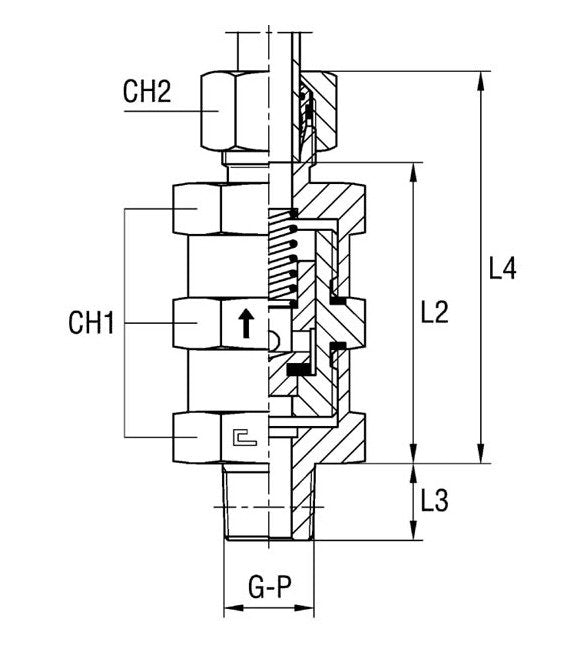

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
27 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L2
62 mm
Specifications L3
19.0 mm
Specifications L4
77 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
15.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
