Male Stud Non Return Valve BSP Taper - Body Only

Name: Male Stud Non Return Valve BSP Taper - Body Only
Brand: World Wide Metric, Inc.
SKU: VAL-3563a3
Price: 69.99 USD
Availability: OutOfStock

SKU:VAL-3563a3

Ensure hydraulic system reliability with the Male Stud Non-Return Valve BSP Taper. Built for durability and precision.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non-Return Valve BSP Taper offers reliable flow control for hydraulic systems. Built with Carbon Steel, this valve ensures longevity and durability. Operating at a light duty pressure of 100 bar, it features a 35.0mm tube diameter, G-Thread Size of 1 1/4, and precise dimensions for seamless integration. Compliant with DIN standards, this valve is ideal for hydraulic applications requiring efficient check valve performance.

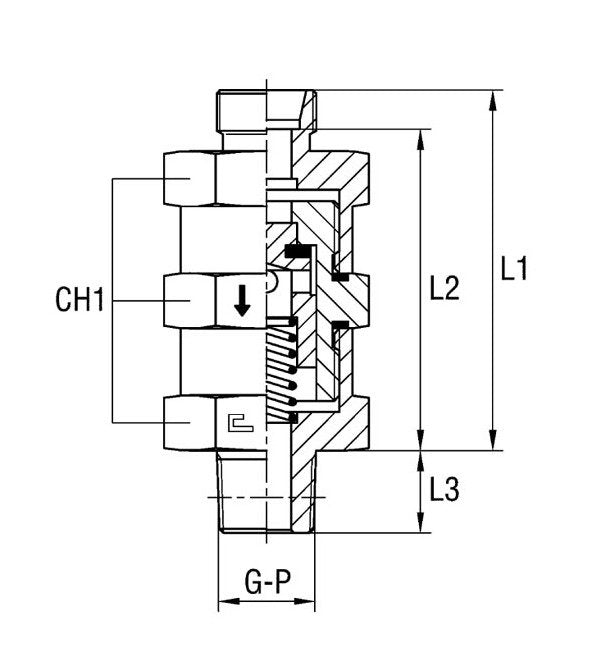

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

25 mm

Specifications G Thread Size

1 1/4

Specifications L1

100 mm

Specifications L2

89.5 mm

Specifications L3

25.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

35.0 mm
