Male Stud Non Return Valve BSP Taper - Carbon Steel, Light Duty, 250 bar
Male Stud Non Return Valve BSP Taper - Carbon Steel, Light Duty, 250 bar
SKU:FIT-f0491f
High-quality Male Stud Non Return Valve BSP Taper for hydraulic systems, 250 bar pressure
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve BSP Taper - Carbon Steel, Light Duty, 250 bar
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve BSP Taper - Carbon Steel, Light Duty, 250 bar
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve BSP Taper is designed for light-duty applications with a nominal operating pressure of 250 bar. Constructed from high-quality carbon steel, this valve ensures reliable performance and durability. Featuring a Tube Diameter of 12.0 mm and a G-Thread Size of 3/8, it is equipped with a B4 Ring for enhanced functionality. Ideal for hydraulic systems requiring precision and efficiency.

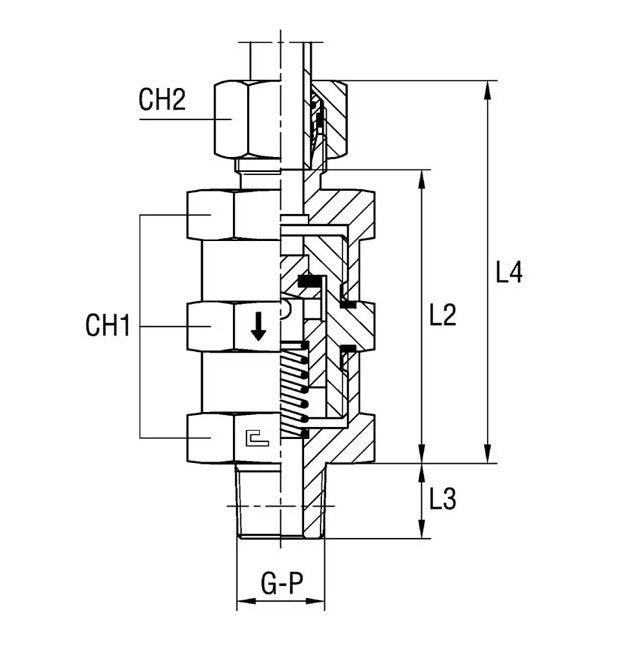

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
22 mm
Specifications Diameter Pass
8 mm
Specifications G Thread Size
3/8
Specifications L2
58 mm
Specifications L3
15 mm
Specifications L4
72.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
12.0 mm
