Male Stud Non Return Valve BSP Taper - Equipped B4 Ring
Male Stud Non Return Valve BSP Taper - Equipped B4 Ring
SKU:VAL-8a1712
Precision-engineered Male Stud Non Return Valve for hydraulic systems - Light Duty, Carbon Steel
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve BSP Taper - Equipped B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve BSP Taper - Equipped B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

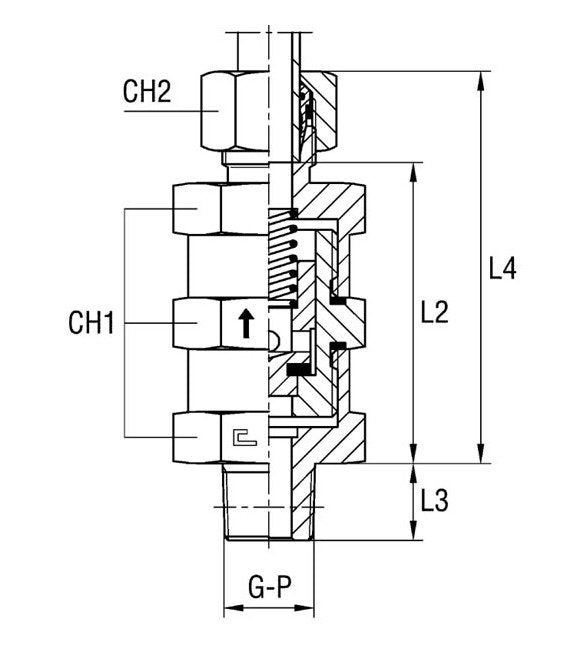

The Male Stud Non Return Valve BSP Taper is designed for light-duty applications with a nominal operating pressure of 250 bar. Constructed from durable carbon steel, this hydraulic check valve features a tube diameter of 10.0mm and a 1/4 inch G-thread size. With precise dimensions including L2: 52.0mm, L3: 15mm, and L4: 66.5mm, it ensures reliable flow control. The valve's compact design, along with a pass diameter of 4mm and CH1/CH2 dimensions of 19.0mm, makes it an ideal choice for hydraulic systems requiring secure non-return functionality.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L2
52.0 mm
Specifications L3
15 mm
Specifications L4
66.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
