Male Stud Non Return Valve BSP Taper - Heavy Duty 400 Bar Pressure, Carbon Steel
Male Stud Non Return Valve BSP Taper - Heavy Duty 400 Bar Pressure, Carbon Steel
SKU:VAL-52c42f
Reliable Male Stud Non Return Valve BSP Taper for hydraulic systems, 400 bar pressure, Carbon Steel construction
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Male Stud Non Return Valve BSP Taper - Heavy Duty 400 Bar Pressure, Carbon Steel
$89.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve BSP Taper - Heavy Duty 400 Bar Pressure, Carbon Steel
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve BSP Taper with Equipped B3 Ring combines heavy-duty performance with precise engineering. Operating at 400 bar pressure, this valve ensures reliable flow control. Crafted from carbon steel, it guarantees durability and strength. With tube diameter of 16.0 mm and various dimensions meticulously designed for optimal functionality, this valve is suitable for hydraulic systems requiring efficiency and resilience. Fulfill your industrial needs with this high-quality valve built to last.

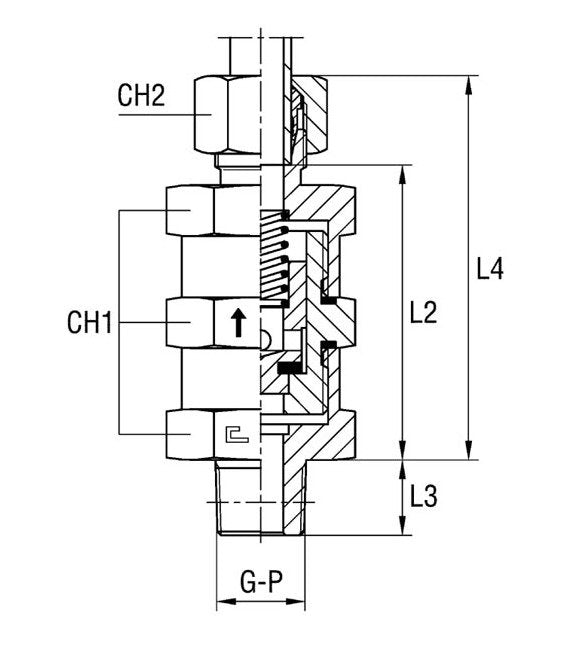

Product Specifications
Specifications Ch1
41 mm
Specifications Ch2
30 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L2
62.5 mm
Specifications L3
19.0 mm
Specifications L4
80.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
