Male Stud Non-Return Valve BSP Taper with B3 Ring
Male Stud Non-Return Valve BSP Taper with B3 Ring
SKU:FIT-f5cc9a
Ensure hydraulic system integrity with our Male Stud Non-Return Valve. Pressure-rated at 250 bar, it's a must-have for precision fluid control.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Male Stud Non-Return Valve BSP Taper with B3 Ring
$24.99
Quantity: 1
Claim Your Seller Account
Male Stud Non-Return Valve BSP Taper with B3 Ring
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

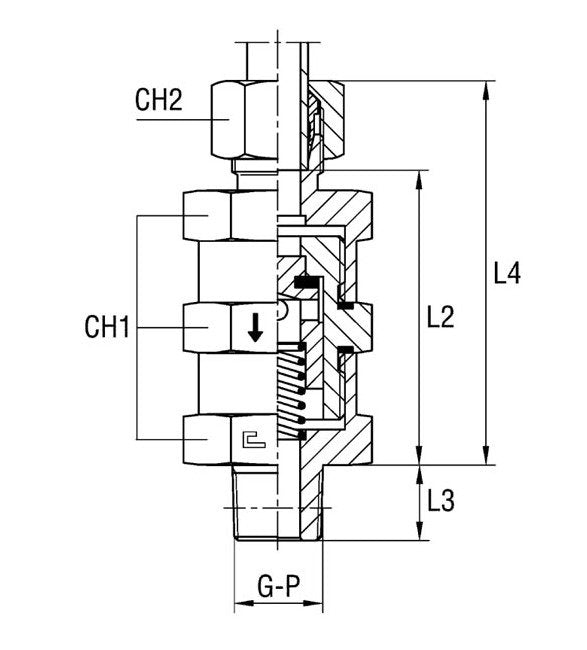

The Male Stud Non-Return Valve BSP Taper with B3 Ring is designed for light-duty hydraulic systems, with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve features a 1/8 G-thread size and a 6.0mm tube diameter, ensuring reliable performance. With precise measurements including L2: 51mm, L3: 10mm, L4: 65.5mm, CH1: 19.0mm, and CH2: 14mm, it guarantees a secure fit. The 4mm diameter pass enables smooth fluid flow, making it a vital component for hydraulic check valve systems.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
14 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications L2
51 mm
Specifications L3
10 mm
Specifications L4
65.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
6.0 mm
