Male Stud Non Return Valve - Extra Light/Heavy/Light Duty - Standard Body
Male Stud Non Return Valve - Extra Light/Heavy/Light Duty - Standard Body
SKU:FIT-baf945
Versatile Male Stud Non Return Valve preventing backflow efficiently under varied pressures. Durable carbon steel construction. Meets high industry standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - Extra Light/Heavy/Light Duty - Standard Body
$69.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - Extra Light/Heavy/Light Duty - Standard Body
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is a versatile hydraulic check valve designed for optimal performance under various pressure conditions. With a nominal operating pressure of 350 bar, this valve ensures reliable flow control and prevents backflow efficiently. Made of durable carbon steel, it features precise specifications including M Tube Diameter of 10 mm, W Tube Diameter of 3/8 in, and W Thread Size of 9/16-20. Suitable for extra light, heavy, and light duty applications, this valve is engineered to meet the highest industry standards for quality and performance.

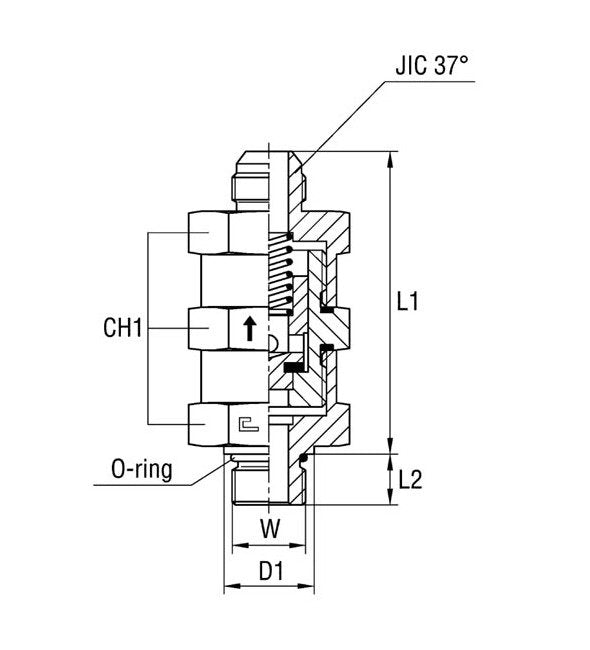

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
62.1 mm
Specifications L2
10.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
9/16-20
Specifications W Tube Diameter
3/8 in
