Male Stud Non Return Valve - Heavy-Duty 350 bar Stainless Steel Valve with O-ring, UNF/UN-2A Thread
Male Stud Non Return Valve - Heavy-Duty 350 bar Stainless Steel Valve with O-ring, UNF/UN-2A Thread
SKU:FIT-82504e
Durable Male Stud Non Return Valve with 350 bar pressure rating, ideal for heavy-duty hydraulic systems
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - Heavy-Duty 350 bar Stainless Steel Valve with O-ring, UNF/UN-2A Thread
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - Heavy-Duty 350 bar Stainless Steel Valve with O-ring, UNF/UN-2A Thread
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is built for durability and reliability in high-pressure hydraulic systems. With a pressure rating of 350 bar and stainless steel construction, this valve ensures long-lasting performance. The O-ring thread design provides a secure seal, preventing backflow and maintaining system efficiency. Meeting stringent industry standards, this valve is ideal for heavy-duty applications.

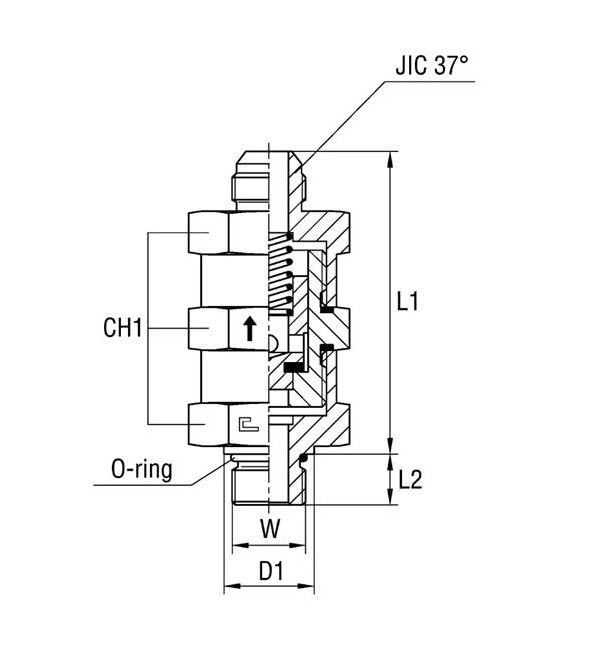

Product Specifications
Specifications Ch1
50 mm
Specifications D1
31.8 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
87.9 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 1/16-12
Specifications W Tube Diameter
3/4 in
