Male Stud Non Return Valve - High Pressure Hydraulic Check Valve
Male Stud Non Return Valve - High Pressure Hydraulic Check Valve
SKU:FIT-6e04f0
High-pressure Male Stud Non Return Valve for reliable hydraulic systems. Stainless steel construction with 240 bar pressure rating. Ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - High Pressure Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - High Pressure Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is designed for high-pressure hydraulic systems, featuring extra light duty to heavy-duty pressure options. With a stainless steel construction, this valve ensures durability and reliability, with a nominal operating pressure of 240 bar. The O-ring thread and precise UNF/UN-2A dimensions provide a secure fit, while the 37° JIC thread guarantees a leak-proof seal. Ideal for industrial applications requiring precise flow control and dependable performance.

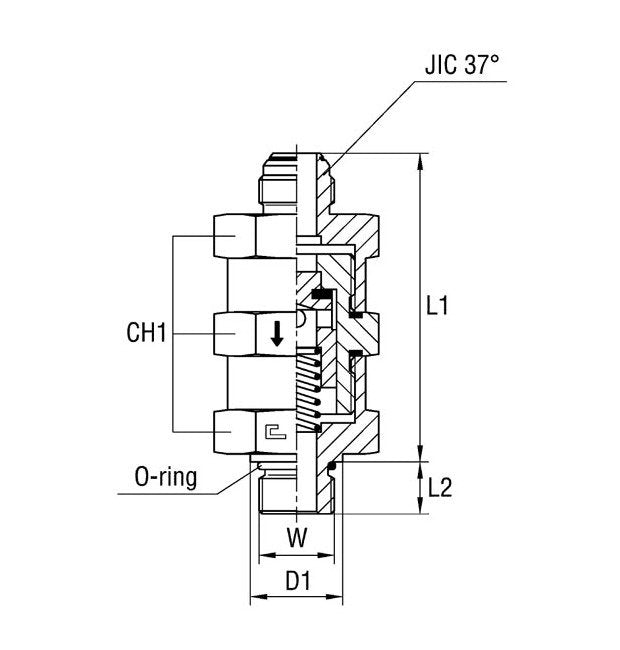

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
