Male Stud Non Return Valve - Hydraulic Check Valve

Name: Male Stud Non Return Valve - Hydraulic Check Valve
Brand: World Wide Metric, Inc.
SKU: FIT-236c1b
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-236c1b

Ensure precise flow control with our Hydraulic Check Valve. Ideal for pressure duties up to 350 bar with durable carbon steel construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Standard Body offers reliable performance for hydraulic systems. Suitable for various pressure duties up to 350 bar, it features durable carbon steel construction and precise dimensions meeting industry standards. This valve ensures proper flow control and prevents backflow, making it ideal for both heavy-duty and light-duty applications.

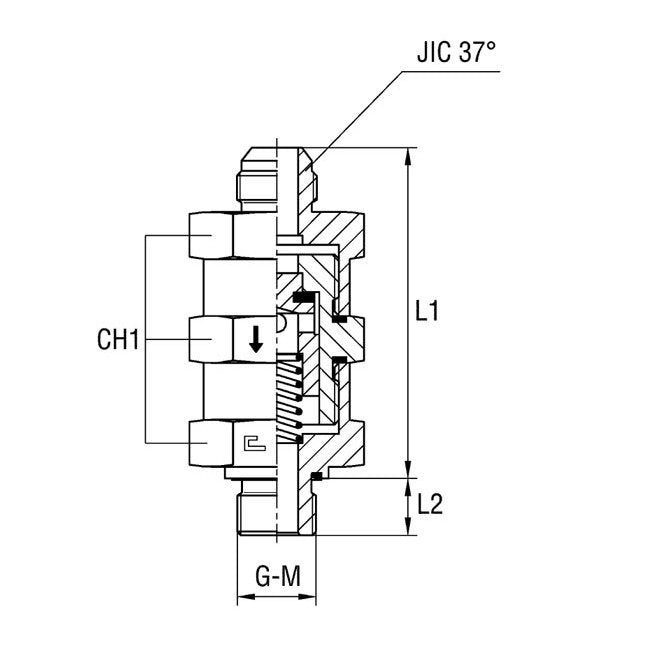

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

14.5 mm

Specifications G Thread Size

3/4

Specifications Jic 37 Thread

1 1/16-12

Specifications L1

90.9 mm

Specifications L2

16.0 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

18 mm | 20 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/4 in
