Male Stud Non Return Valve - Hydraulic Check Valve
Male Stud Non Return Valve - Hydraulic Check Valve
SKU:FIT-bb88e1
Precision Male Stud Non Return Valve for hydraulic applications, meets industry standards, offers reliable flow control up to 350 bar.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - Hydraulic Check Valve
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - Hydraulic Check Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is designed for precision hydraulic applications, featuring an elastomer seal for reliable performance. With pressure options for Extra Light Duty, Heavy Duty, and Light Duty, this valve ensures seamless flow control at up to 350 bar. Crafted from durable carbon steel, it meets stringent industry standards and offers precise thread sizing (27x2) and tube diameters (18mm/20mm). The JIC 37° Thread and 1 1/16-12 threading enhance compatibility, making it ideal for institutional procurement needs.

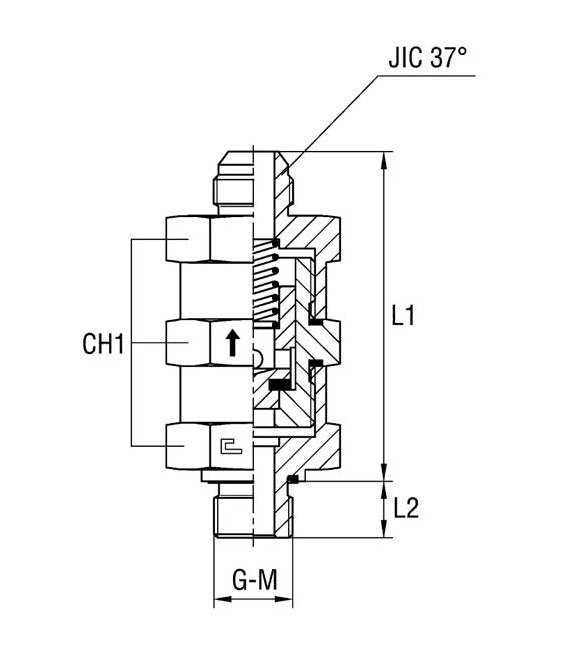

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
27x2
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
