Male Stud Non Return Valve - Metric Parallel, Heavy Duty, 350 bar
Male Stud Non Return Valve - Metric Parallel, Heavy Duty, 350 bar
SKU:FIT-384583
High-performance Male Stud Non Return Valve for hydraulic systems. Heavy Duty, 350 bar pressure rating. Precision engineering and leak-free operation.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - Metric Parallel, Heavy Duty, 350 bar
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - Metric Parallel, Heavy Duty, 350 bar
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal ensures reliable hydraulic flow control. With Heavy Duty pressure rating of 350 bar, it features precision engineering, Carbon Steel construction, and metric parallel threading for seamless installation and leak-free operation. Ideal for industrial applications requiring durable performance and compliance with industry standards.

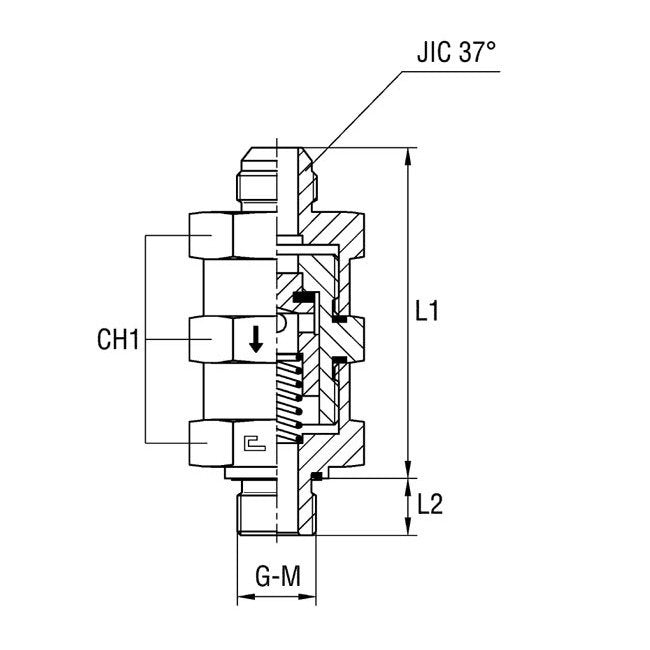

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
79.3 mm
Specifications L2
14.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
22x1.5
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/8 in
