Male Stud Non-Return Valve - Metric Parallel Thread with Elastomer Seal
Male Stud Non-Return Valve - Metric Parallel Thread with Elastomer Seal
SKU:FIT-fec0e9
Robust Male Stud Non-Return Valve for heavy-duty applications, 290 bar Nominal Pressure, Carbon Steel construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non-Return Valve - Metric Parallel Thread with Elastomer Seal
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non-Return Valve - Metric Parallel Thread with Elastomer Seal
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non-Return Valve with Elastomer Seal features a robust design suitable for heavy-duty industrial applications with a Nominal Operating Pressure of 290 bar. Crafted from durable Carbon Steel, it ensures a reliable flow control mechanism. Compliant with Federal procurement standards and ideal for hydraulic systems requiring strict adherence to quality and performance.

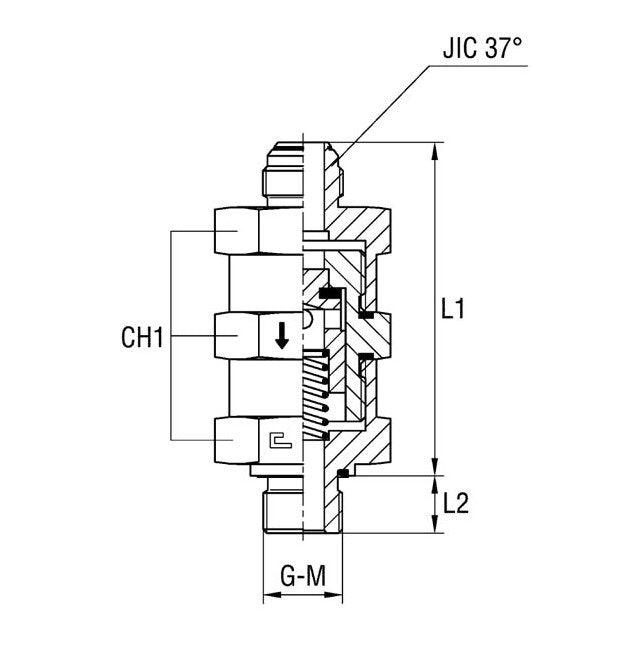

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
92.1 mm
Specifications L2
18.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
33x2
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 in
