Male Stud Non Return Valve - Metric Parallel with Elastomer Seal
Male Stud Non Return Valve - Metric Parallel with Elastomer Seal
SKU:VAL-2b5ced
High-performance Male Stud Non Return Valve for hydraulic systems. Nominal Pressure: 350 bar, Stainless Steel, Metric Parallel Thread.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - Metric Parallel with Elastomer Seal
$45.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - Metric Parallel with Elastomer Seal
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel - Standard Body is a versatile hydraulic check valve designed for extra light duty to heavy duty applications. With a nominal operating pressure of 350 bar, stainless steel construction, and precise M-thread size of 14x1.5, this valve ensures reliable performance and durability. Measuring 10mm in M-tube diameter and 3/8 inch in W-tube diameter, this valve is a perfect fit for hydraulic systems requiring a 4mm diameter pass. It also features an industry-standard JIC 37° thread of 9/16-18, making it compatible with a wide range of hydraulic systems.

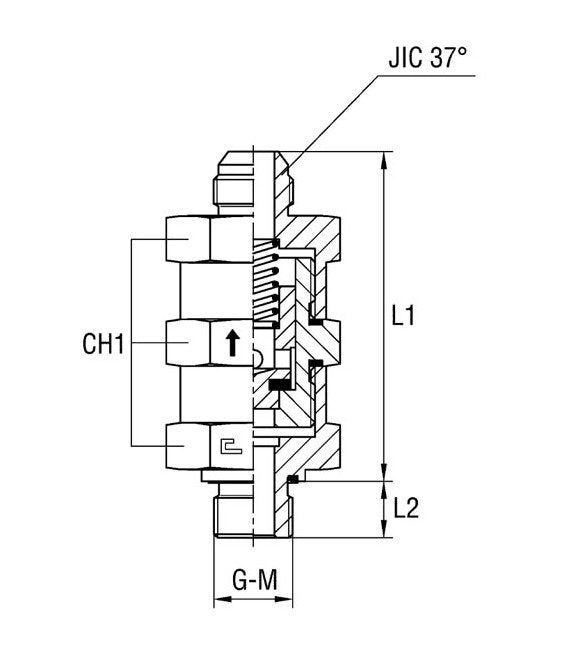

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
64.1 mm
Specifications L2
12.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
