Male Stud Non Return Valve NPT Taper - Body Only, 160 Bar Light Duty Pressure
Male Stud Non Return Valve NPT Taper - Body Only, 160 Bar Light Duty Pressure
SKU:FIT-69db97
High-quality Male Stud Non Return Valve NPT Taper for hydraulic systems, light duty, 160 bar pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve NPT Taper - Body Only, 160 Bar Light Duty Pressure
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve NPT Taper - Body Only, 160 Bar Light Duty Pressure
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

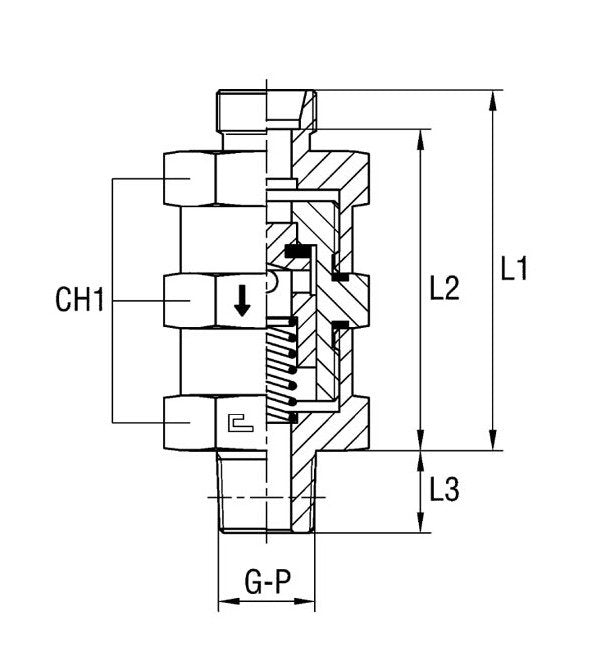

The Male Stud Non Return Valve NPT Taper is a reliable hydraulic check valve designed for light-duty applications up to 160 bar nominal operating pressure. Constructed from high-quality carbon steel, this valve ensures durability and efficient performance. With a tube diameter of 22 mm and a threaded size of 3/4, it provides a secure fit and smooth operation. The valve's compact design, with dimensions of L1: 80 mm, L2: 72.5 mm, L3: 19.0 mm, and CH1: 50 mm, makes it versatile for various hydraulic systems, offering a diameter pass of 16 mm.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
16 mm
Specifications L1
80 mm
Specifications L2
72.5 mm
Specifications L3
19.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications P Thread Size
3/4
Specifications Tube Diameter
22 mm
