Male Stud Non Return Valve Thread BSP Taper - Body Only - Light Duty 250 bar

Name: Male Stud Non Return Valve Thread BSP Taper - Body Only - Light Duty 250 bar
Brand: World Wide Metric, Inc.
SKU: VAL-dcb4f9
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-dcb4f9

Reliable hydraulic check valve for light-duty applications, operating pressure of 250 bar, durable carbon steel construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve Thread BSP Taper - Body Only is a reliable hydraulic check valve designed for light-duty applications with a nominal operating pressure of 250 bar. Crafted from durable carbon steel, this valve ensures long-lasting performance. With a tube diameter of 6.0 mm and precise G-thread size of 1/8, it guarantees a secure fit. The compact design with dimensions meeting industry standards makes it a perfect choice for hydraulic systems that require efficient flow control and backflow prevention.

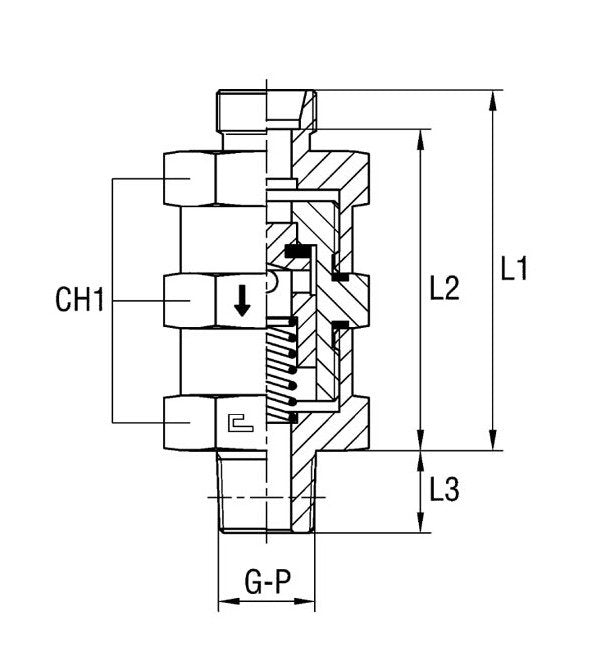

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications L1

58.0 mm

Specifications L2

51 mm

Specifications L3

10 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm

Category 6

Male Stud Non Return Valve Thread BSP Taper

Male Stud Non Return Valve Thread BSP Taper - Body Only - Light Duty 250 bar
