Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring - Hydraulic Check Valve

Name: Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring - Hydraulic Check Valve
Brand: World Wide Metric, Inc.
SKU: FIT-95b454
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-95b454

Dependable Male Stud Non Return Valve Thread BSP Taper with Equipped B3 Ring for hydraulic systems. Light duty, 160 bar. Carbon steel construction.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve Thread BSP Taper with Equipped B3 Ring is a reliable hydraulic check valve designed for light duty applications with a nominal operating pressure of 160 bar. Constructed from durable carbon steel, this valve ensures efficient fluid control. With a tube diameter of 22mm and G-Thread size of 3/4, it offers precise fitment. The valve's compact design, measuring L2: 72.5mm, L3: 19.0mm, and L4: 88.5mm, is suitable for various hydraulic systems. Trust this valve for dependable performance and compliance with industry standards.

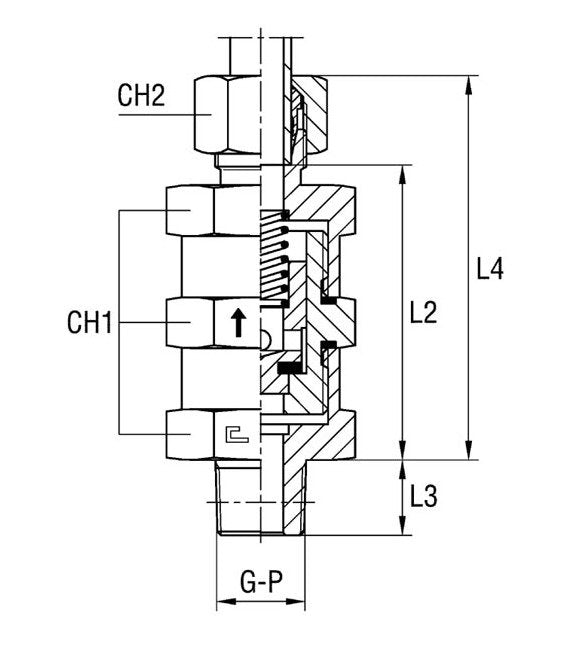

Product Specifications

Specifications Ch1

50 mm

Specifications Ch2

36 mm

Specifications Diameter Pass

16 mm

Specifications G Thread Size

3/4

Specifications L2

72.5 mm

Specifications L3

19.0 mm

Specifications L4

88.5 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

22 mm
