Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring, Light Duty 160 Bar
Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring, Light Duty 160 Bar
SKU:VAL-45b864
Male Stud Non Return Valve for Hydraulic Systems - Reliable & Durable, Light Duty 160 Bar
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring, Light Duty 160 Bar
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve Thread BSP Taper - Equipped B3 Ring, Light Duty 160 Bar
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

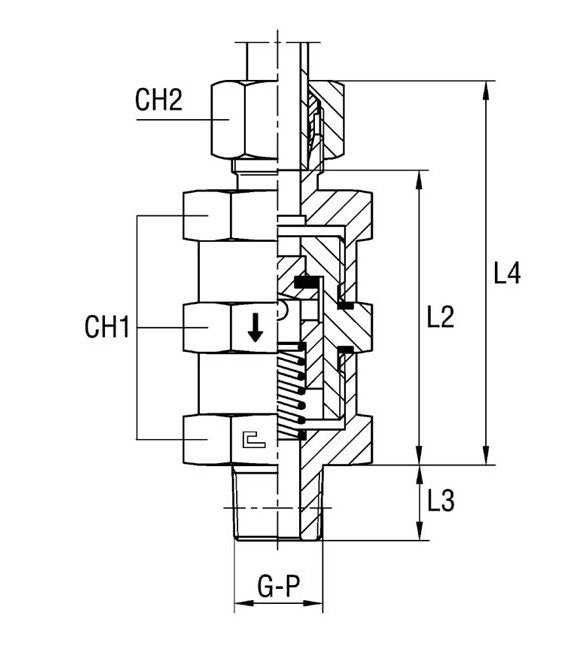

The Male Stud Non Return Valve with Thread BSP Taper and Equipped B3 Ring is a reliable solution for hydraulic systems. With a nominal operating pressure of 160 bar, this valve ensures efficient flow control. Constructed from durable carbon steel, this valve features a 22mm tube diameter and G-Thread Size of 3/4. The design includes precise dimensions like L2: 72.5mm, L3: 19.0mm, L4: 88.5mm, CH1: 50mm, CH2: 36mm, and a Diameter Pass of 16mm, making it suitable for various applications in industrial settings.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
36 mm
Specifications Diameter Pass
16 mm
Specifications G Thread Size
3/4
Specifications L2
72.5 mm
Specifications L3
19.0 mm
Specifications L4
88.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
22 mm
Category 6
Male Stud Non Return Valve Thread BSP Taper
