Male Stud Non Return Valve Thread BSP Taper - Stainless Steel Body

Name: Male Stud Non Return Valve Thread BSP Taper - Stainless Steel Body
Brand: World Wide Metric, Inc.
SKU: FIT-3092a7
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-3092a7

Stainless Steel Male Stud Valve for Hydraulic Applications - Reliable Performance & Industry Compliance

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

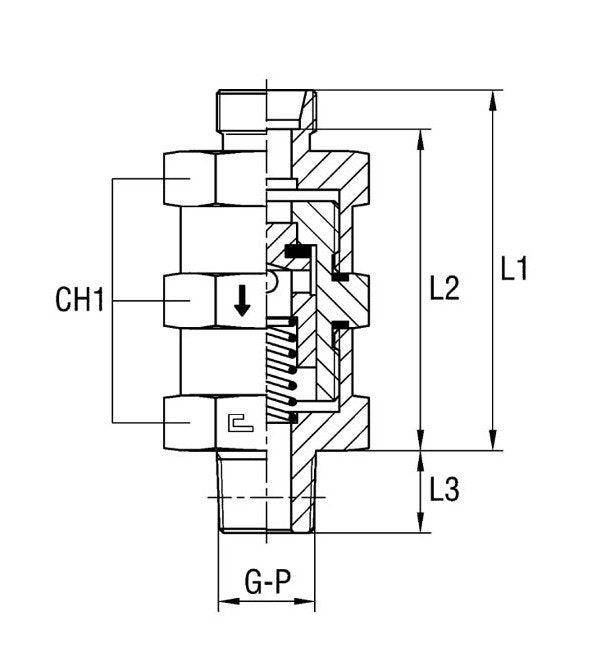

The Male Stud Non Return Valve Thread BSP Taper features a durable Stainless Steel Body designed for light-duty applications with a Nominal Operating Pressure of 100 bar. Its precise engineering ensures reliable performance, featuring a Tube Diameter of 35.0 mm and G-Thread Size of 1 1/4. With dimensions crafted for efficiency, this valve's L1 is 100 mm, L2 is 89.5 mm, and L3 is 25.0 mm. The CH1 dimension is 70 mm, and it offers a Diameter Pass of 25 mm. Built to last and comply with industry standards, this valve is a dependable choice for hydraulic systems.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

25 mm

Specifications G Thread Size

1 1/4

Specifications L1

100 mm

Specifications L2

89.5 mm

Specifications L3

25.0 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

35.0 mm
