Male Stud Non Return Valve Thread NPT Taper - Equipped B3 Ring
Male Stud Non Return Valve Thread NPT Taper - Equipped B3 Ring
SKU:FIT-ebff05
Precision male stud non-return valve for hydraulic systems, light-duty with 160 bar pressure, carbon steel construction. Ensure flow control and backflow prevention.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve Thread NPT Taper - Equipped B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve Thread NPT Taper - Equipped B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

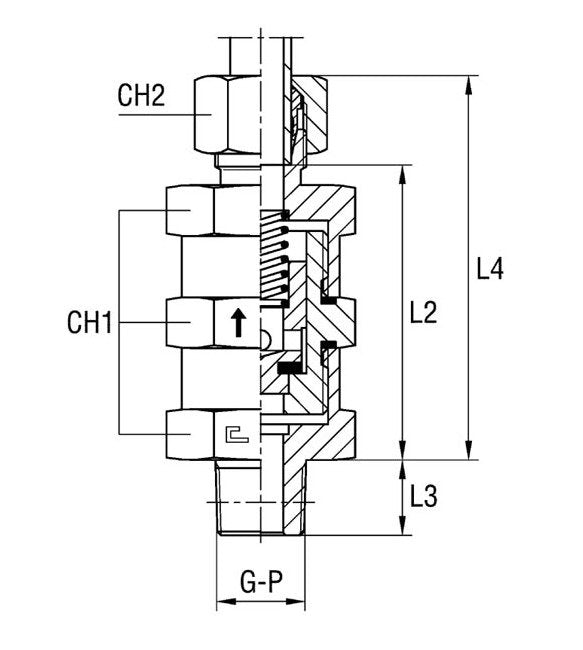

The Male Stud Non Return Valve Thread NPT Taper with Equipped B3 Ring is a precision-engineered hydraulic check valve suitable for light-duty applications. With a nominal operating pressure of 160 bar and a tube diameter of 22mm, this valve ensures reliable flow control and backflow prevention in hydraulic systems. Crafted from durable carbon steel, it features precise dimensions including P-Thread Size of 3/4, L2 of 72.5mm, L3 of 19.0mm, and L4 of 88.5mm. The valve's design incorporates CH1 of 50mm, CH2 of 36mm, and a Diameter Pass. of 16mm, making it an essential component for hydraulic systems requiring efficiency and performance.
Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
36 mm
Specifications Diameter Pass
16 mm
Specifications L2
72.5 mm
Specifications L3
19.0 mm
Specifications L4
88.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications P Thread Size
3/4
Specifications Tube Diameter
22 mm
