Male Stud Non Return Valve UNF/UN-2A - Carbon Steel
Male Stud Non Return Valve UNF/UN-2A - Carbon Steel
SKU:FIT-84bfd4
Enhance hydraulic systems with the Male Stud Non Return Valve UNF/UN-2A for precise control and exceptional durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve UNF/UN-2A - Carbon Steel
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve UNF/UN-2A - Carbon Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve UNF/UN-2A - Standard Body is a high-quality hydraulic check valve designed for extra light duty, heavy duty, and light duty applications, with a nominal operating pressure of 400 bar. Crafted from durable carbon steel, this valve features precise dimensions including an 8mm tube diameter, 5/16in W tube diameter, 1/2-20 thread size, and meets stringent industry standards for reliability and performance.

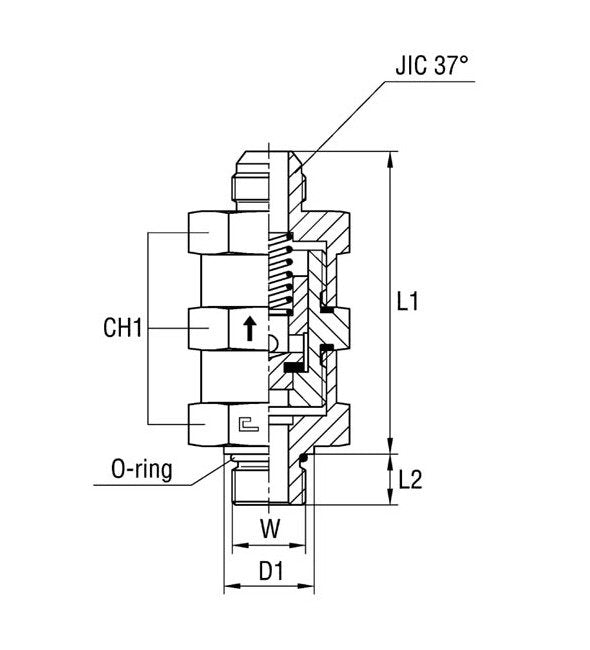

Product Specifications
Specifications Ch1
19.0 mm
Specifications D1
16.8 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
62.5 mm
Specifications L2
9.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1/2-20
Specifications W Tube Diameter
5/16 in
