Male Stud Non Return Valve UNF/UN-2A - Hydraulic Check Valve
Male Stud Non Return Valve UNF/UN-2A - Hydraulic Check Valve
SKU:VAL-b9eaed
High-quality Male Stud Non Return Valve UNF/UN-2A with durable carbon steel construction for reliable hydraulic operations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve UNF/UN-2A - Hydraulic Check Valve
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve UNF/UN-2A - Hydraulic Check Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

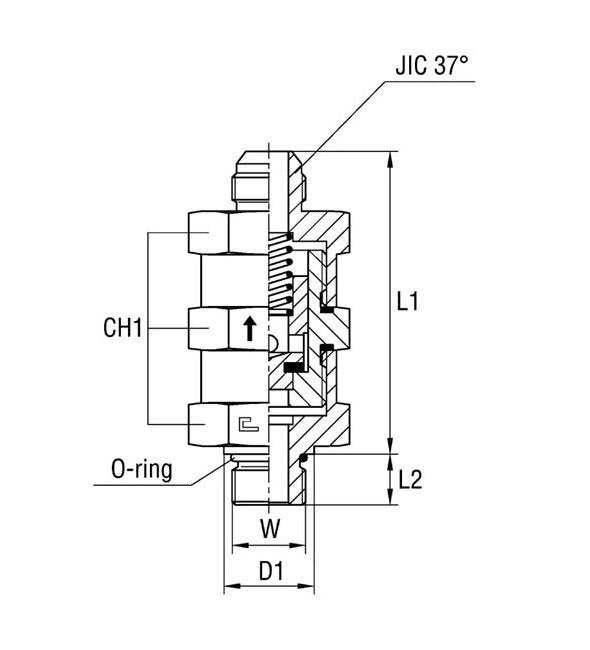

The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A is a versatile hydraulic check valve designed for extra light duty, heavy duty, and light duty applications with a nominal operating pressure of 350 bar. Crafted from durable carbon steel, this valve features precise dimensions including M and W tube diameters, thread size, and JIC 37° threading for a secure fit. With a Diameter Pass of 14.5mm and industry-standard construction, this valve ensures reliable performance in hydraulic systems.
Product Specifications
Specifications Ch1
50 mm
Specifications D1
31.8 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
87.9 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 1/16-12
Specifications W Tube Diameter
3/4 in
Category 6
Male Stud Non Return Valve with O-ring Thread UNF/UN-2A
