Male Stud Non Return Valve - UNF/UN-2A, O-Ring Body
Male Stud Non Return Valve - UNF/UN-2A, O-Ring Body
SKU:FIT-d4e656
Enhance hydraulic system performance with the Male Stud Non Return Valve featuring a robust Carbon Steel build and O-ring seal.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - UNF/UN-2A, O-Ring Body
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - UNF/UN-2A, O-Ring Body
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve is designed for high-pressure hydraulic systems, featuring a durable Carbon Steel construction. With a Nominal Operating Pressure of 240 bar, this valve ensures secure fluid control and prevents backflow. Its O-ring Thread UNF/UN-2A design, along with the O-ring body, provides a reliable seal, making it ideal for heavy-duty applications. Compliant with industry standards, this valve offers optimal performance in various hydraulic setups.

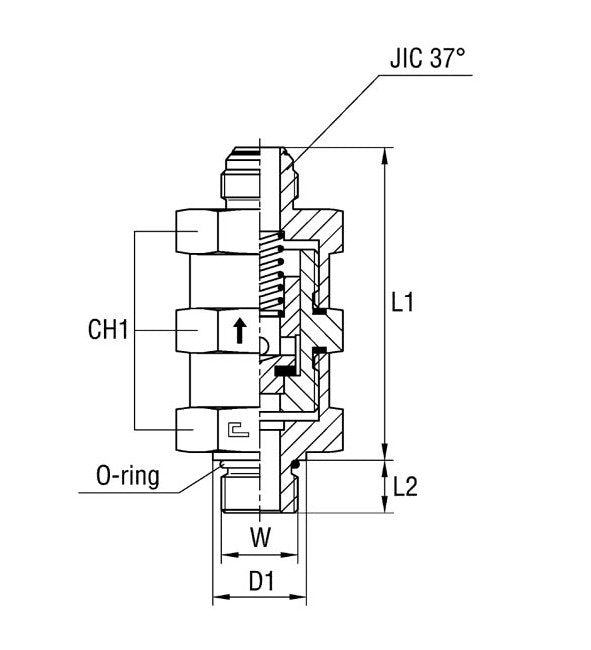

Product Specifications
Specifications Ch1
70 mm
Specifications D1
54.8 mm
Specifications Diameter Pass
29 mm
Specifications Jic 37 Thread
1 7/8-12
Specifications L1
111.5 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
38 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 7/8-12
Specifications W Tube Diameter
1 1/2 in
