Male Stud Non Return Valve - UNF/UN-2A Thread, Carbon Steel
Male Stud Non Return Valve - UNF/UN-2A Thread, Carbon Steel
SKU:FIT-41e35e
High-performance Male Stud Non Return Valve for hydraulic systems. Durable carbon steel construction, suitable for heavy-duty use up to 240 bar.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve - UNF/UN-2A Thread, Carbon Steel
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve - UNF/UN-2A Thread, Carbon Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with O-ring Thread UNF/UN-2A - Standard Body is designed for robust hydraulic applications. With a pressure range suitable for heavy-duty use up to 240 bar, this valve ensures reliable performance. Its carbon steel construction guarantees durability, making it ideal for industrial settings. The precision engineering of this valve meets strict quality standards, providing efficient flow control and preventing backflow.

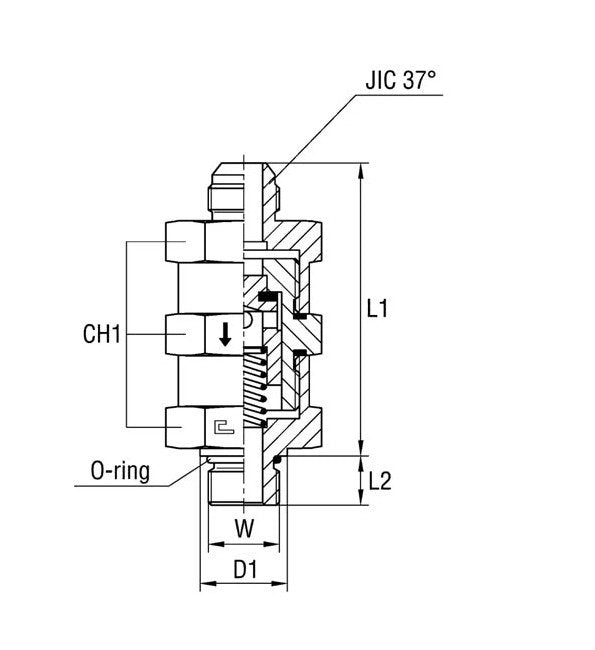

Product Specifications
Specifications Ch1
70 mm
Specifications D1
49.8 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
108.3 mm
Specifications L2
15.1 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
1 5/8-12
Specifications W Tube Diameter
1 1/4 in
