Male Stud Non Return Valve UNF/UN-2A with O-ring Thread - Carbon Steel
Male Stud Non Return Valve UNF/UN-2A with O-ring Thread - Carbon Steel
SKU:FIT-65a1c3
High-quality Male Stud Non Return Valve with O-ring Thread in Carbon Steel - Ideal for heavy-duty hydraulic applications
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve UNF/UN-2A with O-ring Thread - Carbon Steel
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve UNF/UN-2A with O-ring Thread - Carbon Steel
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve UNF/UN-2A with O-ring Thread in Carbon Steel is a high-quality hydraulic check valve designed for extra duty applications. With a nominal operating pressure of 350 bar, this valve offers reliable performance and durability. Its precise dimensions and JIC 37° threads ensure a secure fit, while the carbon steel construction provides strength and corrosion resistance. Ideal for heavy-duty industrial use, this valve meets stringent industry standards for quality and reliability.
Ready to Grow Without Cash Flow Constraints?

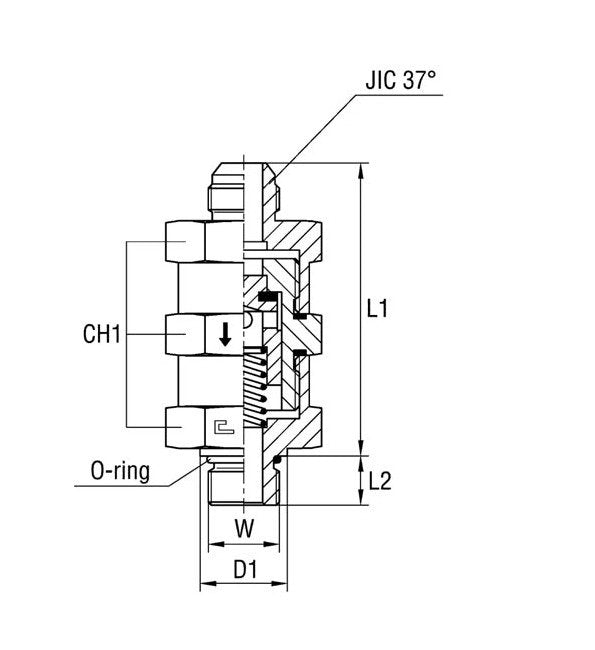

Product Specifications
Specifications Ch1
41 mm
Specifications D1
26.8 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
76.3 mm
Specifications L2
12.7 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Thread Size
7/8-14
Specifications W Tube Diameter
5/8 in
