Male Stud Non Return Valve with Elastomer Seal
Male Stud Non Return Valve with Elastomer Seal
SKU:VAL-d275ab
High-quality Male Stud Non Return Valve for precise hydraulic fluid control in light-duty systems. Stainless steel construction, nominal operating pressure of 250 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

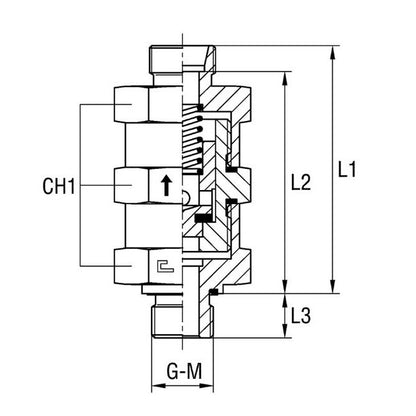

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty hydraulic systems with a nominal operating pressure of 250 bar. Crafted from stainless steel, this valve ensures durability and reliability. With its 10.0mm tube diameter and 1/4 G-thread size, it provides precision and efficiency in fluid control. The valve's compact design, measuring L1 61.0mm, L2 54.0mm, and CH1 19.0mm, makes it suitable for various applications. With a 4mm diameter pass, it guarantees smooth fluid passage, meeting the quality standards required for hydraulic check valves.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L1
61.0 mm
Specifications L2
54.0 mm
Specifications L3
12.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
