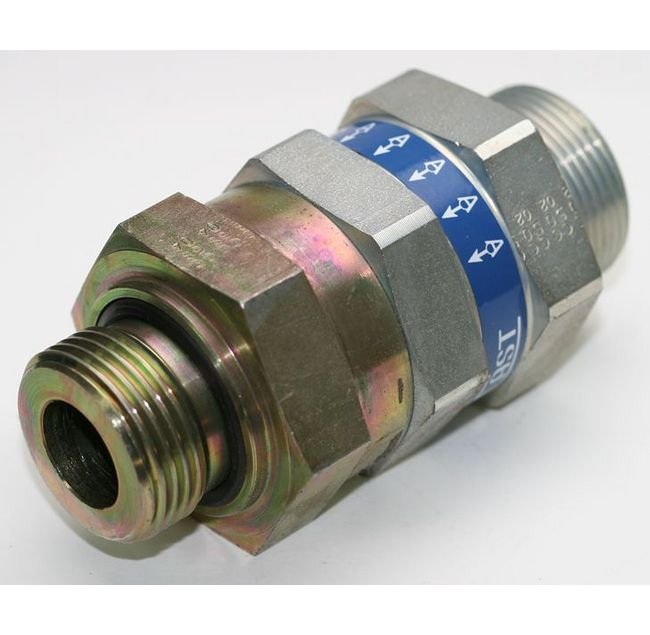

Male Stud Non Return Valve with Elastomer Seal
Male Stud Non Return Valve with Elastomer Seal
SKU:FIT-01d4c2
Heavy-duty Non Return Valve with Elastomer Seal for reliable high-pressure fluid control.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from carbon steel, this valve ensures reliability and durability under high-pressure conditions. With a tube diameter of 10.0 mm and G-Thread Size of 3/8, it offers precise fitting and efficient performance. The elastomer seal enhances sealing properties, preventing backflow and maintaining system integrity. Ideal for hydraulic systems requiring secure fluid control, this valve meets stringent industry standards for quality and performance.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
7 mm
Specifications G Thread Size
3/8
Specifications L1
68.5 mm
Specifications L2
61 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
10.0 mm
