Male Stud Non Return Valve with Elastomer Seal

Name: Male Stud Non Return Valve with Elastomer Seal
Brand: World Wide Metric, Inc.
SKU: FIT-4fd303
Price: 79.99 USD
Availability: OutOfStock

SKU:FIT-4fd303

Reliable Male Stud Non Return Valve for hydraulic systems. Operates at 290 bar pressure, stainless steel build.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

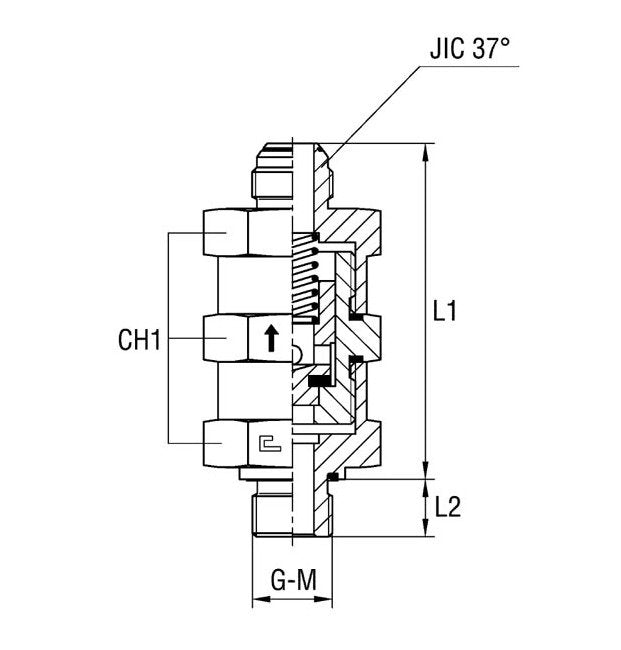

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - O-ring Body offers reliable performance under varying pressure conditions, with three duty options: Extra Light Duty, Heavy Duty, and Light Duty. Operating at a Nominal Pressure of 290 bar, it features a durable Stainless Steel construction ensuring longevity. The valve's dimensions include M - Tube Diameter of 25 mm, W - Tube Diameter of 1 in, and G - Thread Size of 1, meeting stringent quality standards for hydraulic applications.

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

18 mm

Specifications G Thread Size

Specifications Jic 37 Thread

1 5/16-12

Specifications L1

92.1 mm

Specifications L2

18.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

25 mm

Specifications Nominal Operating Pressure

290 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1 in

Male Stud Non Return Valve with Elastomer Seal
