Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:VAL-7ac23b
High-quality Male Stud Non Return Valve with Elastomer Seal for hydraulic systems. Pressure: Light Duty, Operating Pressure: 250 bar.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$45.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

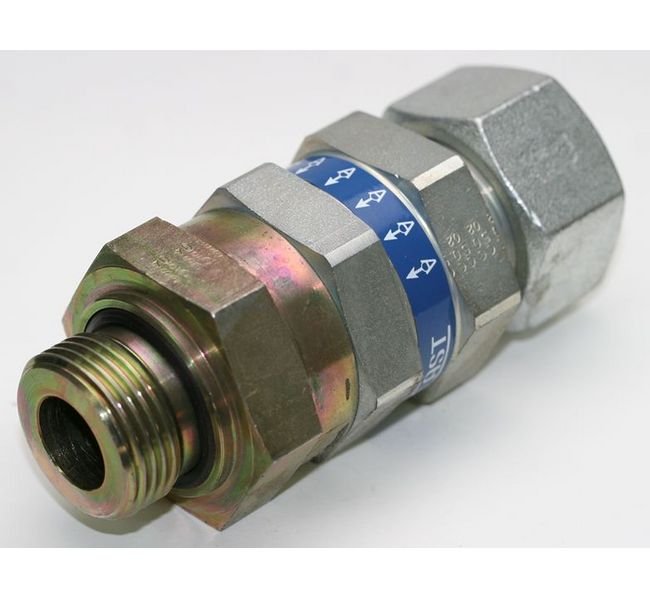

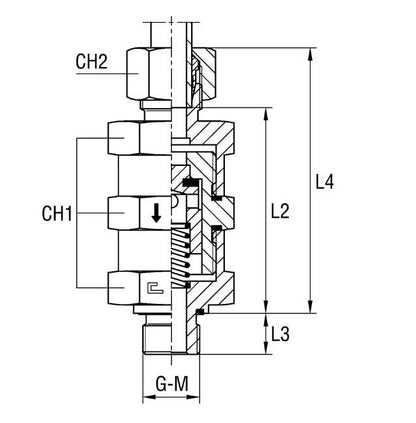

The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is a high-quality valve designed for light duty applications with a Nominal Operating Pressure of 250 bar. Constructed from Carbon Steel, it features a Tube Diameter of 8.0mm and a G - Thread Size of 1/4. With a Diameter Pass of 4mm and dimensions meeting CH1: 19.0mm, CH2: 17.0mm, L2: 53mm, L3: 12.0mm, L4: 67.5mm, this valve ensures precise hydraulic performance and durability.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
17.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/4
Specifications L2
53 mm
Specifications L3
12.0 mm
Specifications L4
67.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
8.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
