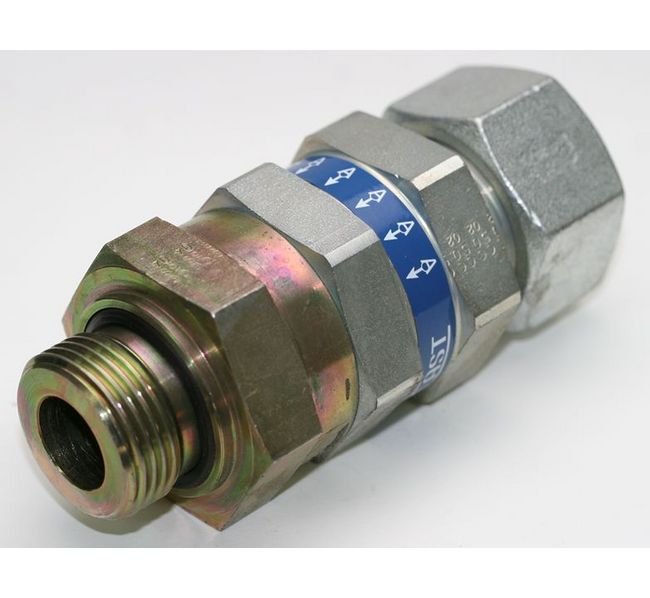

Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:VAL-bec0f9
Enhance hydraulic system performance with our Male Stud Non Return Valve. Durable carbon steel construction, precise flow control, and backflow prevention.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

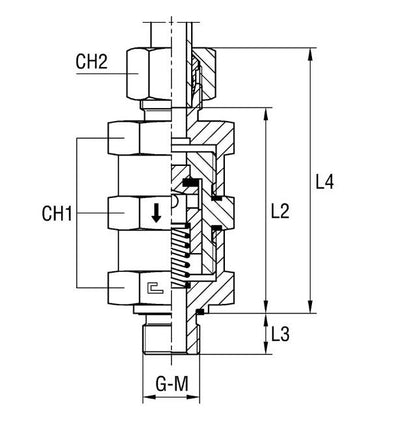

The Male Stud Non Return Valve with Elastomer Seal offers reliable light-duty performance with a nominal operating pressure of 100 bar. Made of durable carbon steel, this valve features a 35.0 mm tube diameter, 1 1/4 G-thread size, and a passage diameter of 25 mm. Its compact design includes dimensions L2: 92.5 mm, L3: 20.0 mm, L4: 114 mm, CH1: 70 mm, CH2: 50 mm, ensuring efficient hydraulic operations. Compliant with industry standards, this valve is ideal for hydraulic systems requiring precise flow control and backflow prevention.
Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
50 mm
Specifications Diameter Pass
25 mm
Specifications G Thread Size
1 1/4
Specifications L2
92.5 mm
Specifications L3
20.0 mm
Specifications L4
114 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
100 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
35.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
