Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:VAL-fac86c
Reliable Male Stud Non Return Valve with Elastomer Seal for hydraulic systems, ensures secure fittings & smooth flow.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is designed for hydraulic systems requiring light-duty pressure control up to 250 bar. Constructed from stainless steel, this valve ensures reliable performance and durability. With a precise tube diameter of 6.0mm and a G-Thread Size of 1/8, it offers secure fittings and smooth flow. The valve's compliance with industry standards makes it a trusted choice for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?

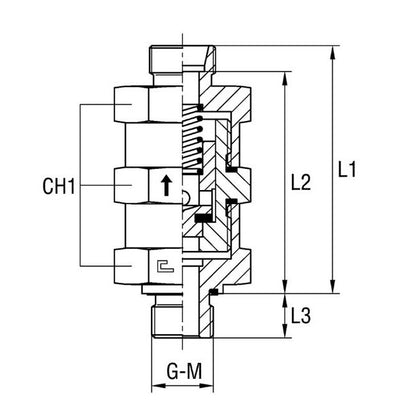

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications G Thread Size
1/8
Specifications L1
60.0 mm
Specifications L2
53 mm
Specifications L3
8.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
6.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
