Male Stud Non Return Valve with Elastomer Seal BSP Parallel
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
SKU:VAL-0f9617
Get reliable hydraulic control with our Male Stud Non Return Valve suitable for extra light to heavy-duty operations. Built to last with carbon steel and precise sealing for 350 bar pressure applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal BSP Parallel - O-ring Body is a reliable hydraulic check valve designed for extra light duty, heavy duty, and light duty applications with a nominal operating pressure of 350 bar. Crafted from carbon steel, this valve ensures durability and precision. With multiple tube diameter options and a 1/2 inch thread size, it offers versatility and secure sealing, meeting stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?

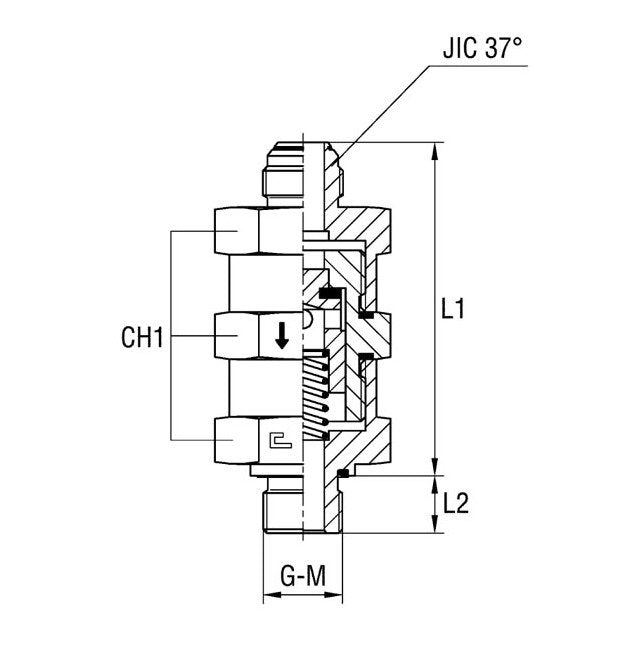

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications Jic 37 Thread
7/8-14
Specifications L1
79.3 mm
Specifications L2
14.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/8 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
