Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:VAL-f565dc
Enhance flow control with our Male Stud Non Return Valve. Ideal for hydraulic applications. Carbon Steel construction. Pressure options available.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

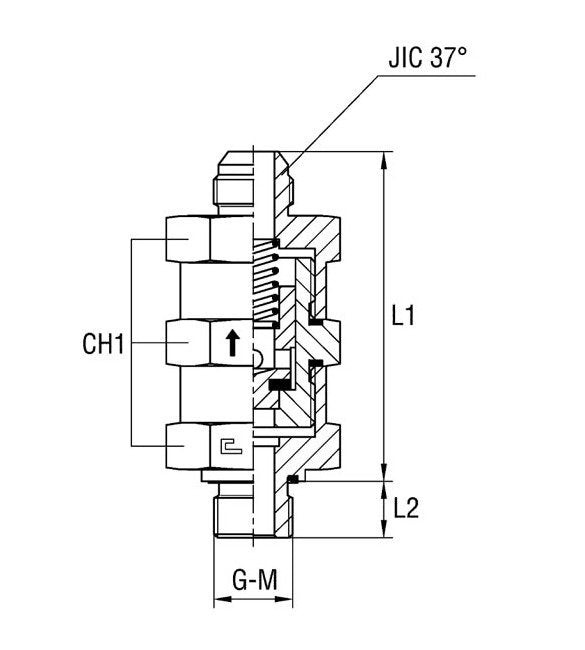

The Male Stud Non Return Valve with Elastomer Seal offers reliable performance under varying pressure conditions with options for Extra Light Duty, Heavy Duty, and Light Duty applications. Made of durable Carbon Steel, this valve ensures efficient flow control with a Nominal Operating Pressure of 240 bar. Designed with precision, it features specific dimensions to fit Tube Diameters, Thread Sizes, and a JIC 37° Thread, meeting stringent DIN and hydraulic valve standards for optimum functionality.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications G Thread Size
1 1/4
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
111.3 mm
Specifications L2
20.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
