Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
SKU:VAL-532493
Reliable Male Stud Non Return Valve with Elastomer Seal for precise flow control in industrial applications. Compliant with DIN standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$49.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Standard Body is designed for extra light, heavy, and light duty applications with a nominal operating pressure of 350 bar. Featuring stainless steel construction, it offers reliability and durability. With tube diameters ranging from 14mm to 16mm and thread size of 1/2, this valve provides precise flow control. Compliant with DIN and hydraulic check valve standards, it ensures performance and safety in diverse industrial environments.

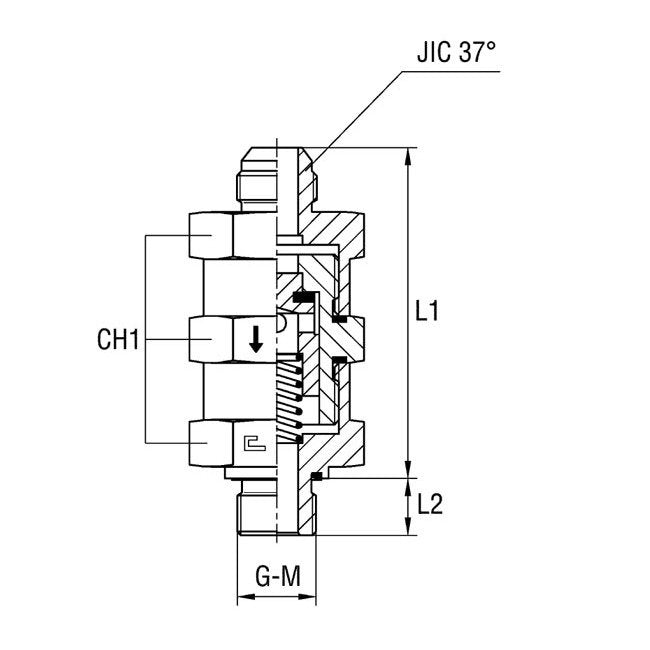

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications Jic 37 Thread
7/8-14
Specifications L1
79.3 mm
Specifications L2
14.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/8 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
