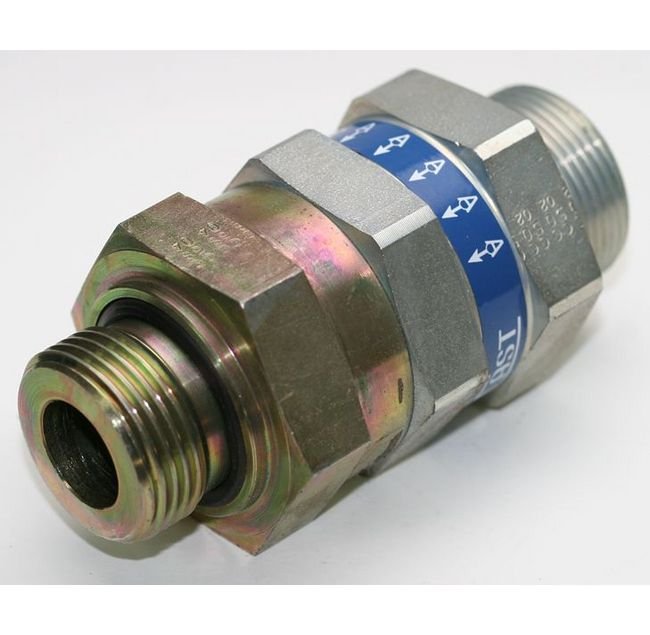

Male Stud Non Return Valve with Elastomer Seal - BSP Parallel

Name: Male Stud Non Return Valve with Elastomer Seal - BSP Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-032abf
Price: 25.99 USD
Availability: OutOfStock

SKU:FIT-032abf

Durable Male Stud Non Return Valve for precise hydraulic flow control in BSP Parallel threading, ideal for light-duty systems.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal in BSP Parallel threading is designed for light-duty hydraulic systems, with a Nominal Operating Pressure of 100 bar. Crafted from durable Carbon Steel, this valve ensures optimal flow control and reliability. Featuring a Tube Diameter of 42.0 mm and G - Thread Size of 1 1/2, it provides precise performance in various fluid handling applications. With dimensions L1: 103.0 mm, L2: 92 mm, L3: 22.0 mm, and CH1: 70 mm, this valve offers easy installation and maintenance, making it a trusted choice for hydraulic check valve needs.

Product Specifications

Specifications Ch1

70 mm

Specifications Diameter Pass

29 mm

Specifications G Thread Size

1 1/2

Specifications L1

103.0 mm

Specifications L2

92 mm

Specifications L3

22.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

100 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

42.0 mm
