Male Stud Non Return Valve with Elastomer Seal - BSP Parallel, 350 Bar Pressure

Name: Male Stud Non Return Valve with Elastomer Seal - BSP Parallel, 350 Bar Pressure
Brand: World Wide Metric, Inc.
SKU: FIT-f0a720
Price: 55.99 USD
Availability: OutOfStock

SKU:FIT-f0a720

Reliable Male Stud Non Return Valve with Elastomer Seal for hydraulic systems. Nominal Pressure: 350 bar. Stainless Steel construction.

$55.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal is a robust hydraulic check valve designed for various pressure requirements including Extra Light Duty, Heavy Duty, and Light Duty applications. With a Nominal Operating Pressure of 350 bar, this valve ensures efficient flow control. Crafted from high-quality Stainless Steel, it features precise dimensions with a 10 mm M-Tube Diameter, 3/8 in W-Tube Diameter, and 1/4 G Thread Size. The inclusion of JIC 37° Thread, 4 mm Diameter Pass., and 9/16-18 thread ensures versatility and adaptability to different hydraulic systems.

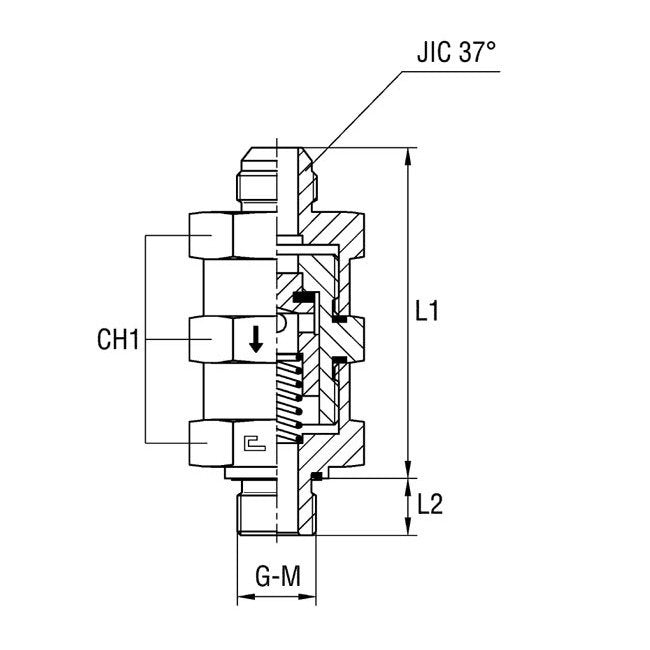

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/4

Specifications Jic 37 Thread

9/16-18

Specifications L1

64.1 mm

Specifications L2

12.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

10 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/8 in

Male Stud Non Return Valve with Elastomer Seal - BSP Parallel, 350 Bar Pressure
