Male Stud Non Return Valve with Elastomer Seal BSP Parallel
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
SKU:FIT-3ba39d
High-performance Male Stud Non Return Valve with Elastomer Seal for secure hydraulic flow control.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
$59.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal BSP Parallel
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Standard Body is a reliable hydraulic check valve suitable for a variety of applications. With a pressure range from extra light duty to heavy duty, a nominal operating pressure of 290 bar, and made of durable carbon steel, this valve ensures secure flow control. Its precise design with a thread size of 1 and tube diameters of 25mm and 1 inch guarantees optimal performance. Compliant with Federal/DoD procurement standards and suitable for GSA requirements, this valve meets industry-specific certifications and TAA compliance considerations, making it ideal for institutional buyers seeking quality and compliance.
Ready to Grow Without Cash Flow Constraints?

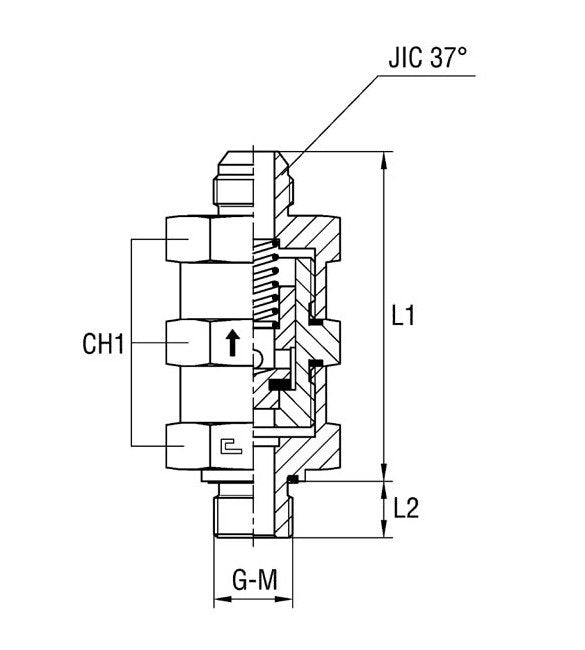

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications G Thread Size
1
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
92.1 mm
Specifications L2
18.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 in
