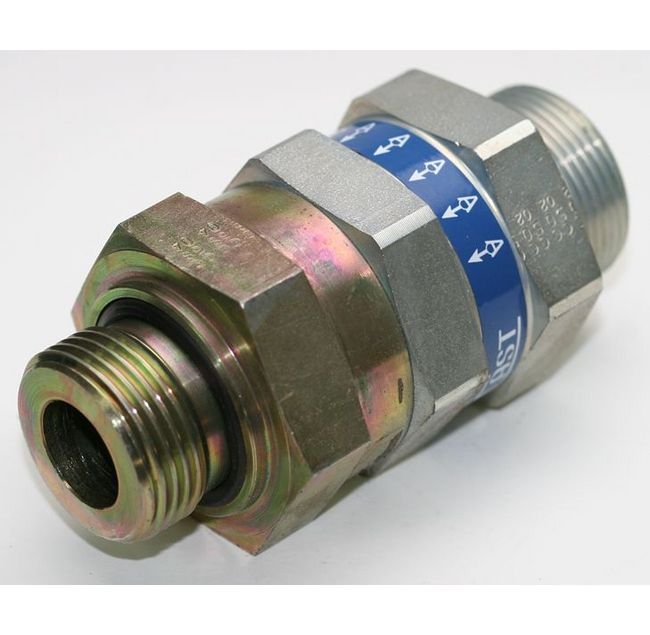

Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Body Only
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Body Only
SKU:VAL-15408d
High-quality Male Stud Non Return Valve for hydraulic applications. Operates at 250 bar pressure with precise carbon steel construction.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Body Only
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Body Only
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel - Body Only is designed for light-duty applications with a nominal operating pressure of 250 bar. Made of high-quality carbon steel, this valve features precise specifications including a tube diameter of 15.0 mm and G-Thread size of 1/2. With a compact design and reliable performance, this valve ensures efficient hydraulic operations. It meets industry standards for durability and functionality, making it an ideal choice for both consumer and institutional buyers.

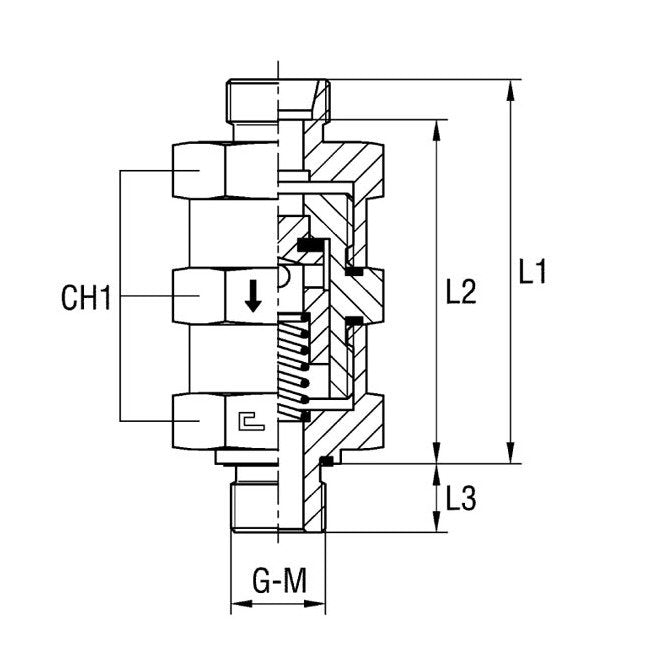

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications G Thread Size
1/2
Specifications L1
72.0 mm
Specifications L2
65 mm
Specifications L3
14.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Light Duty
Specifications Tube Diameter
15.0 mm
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread BSP Parallel
