Male Stud Non Return Valve with Elastomer Seal BSP Parallel Body Only

Name: Male Stud Non Return Valve with Elastomer Seal BSP Parallel Body Only
Brand: World Wide Metric, Inc.
SKU: FIT-ab28a9
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-ab28a9

Precision-designed Male Stud Non Return Valve for hydraulic systems, light-duty, 250 bar.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

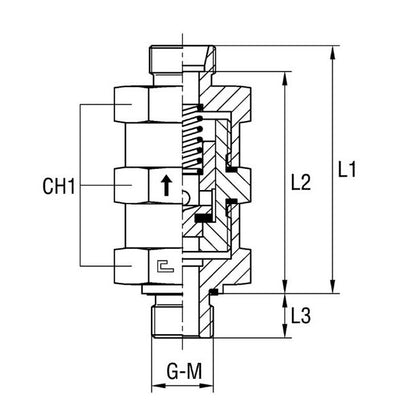

The Male Stud Non Return Valve with Elastomer Seal is designed for light duty applications with a nominal operating pressure of 250 bar. Constructed from Carbon Steel, this valve ensures reliable performance and durability. With a Tube Diameter of 6.0 mm and G-Thread Size of 1/8, it offers precision and efficiency. The valve's compact design with dimensions L1: 60.0 mm, L2: 53 mm, L3: 8.0 mm, and CH1: 19.0 mm make it ideal for hydraulic systems in diverse settings.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

4 mm

Specifications G Thread Size

1/8

Specifications L1

60.0 mm

Specifications L2

53 mm

Specifications L3

8.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

250 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

6.0 mm

Male Stud Non Return Valve with Elastomer Seal BSP Parallel Body Only
