Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Heavy Duty
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Heavy Duty
SKU:FIT-c687ff
Durable Male Stud Non Return Valve with Elastomer Seal - Ideal for High-Pressure Hydraulic Systems
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Heavy Duty
$89.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal BSP Parallel - Heavy Duty
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal puts durability and reliability at the forefront with a heavy-duty design suitable for high-pressure applications up to 250 bar. Crafted from premium stainless steel, this valve ensures long-term performance, with precise specifications like a 38.0 mm tube diameter and 1 1/2 G-thread size. Meeting stringent quality standards, this valve provides exceptional flow control and resistance to corrosion, making it a top choice for hydraulic systems in diverse industrial settings.

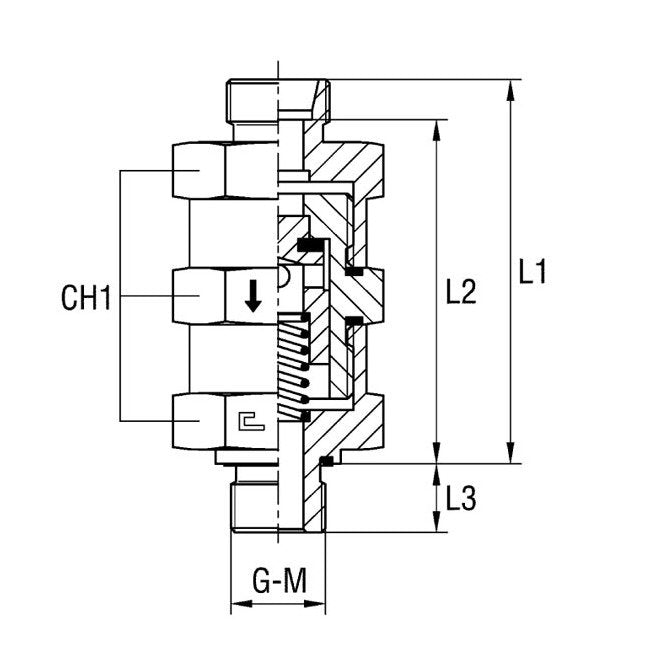

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/2
Specifications L1
109 mm
Specifications L2
93 mm
Specifications L3
22.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
