Male Stud Non Return Valve with Elastomer Seal - BSP Parallel Thread

Name: Male Stud Non Return Valve with Elastomer Seal - BSP Parallel Thread
Brand: World Wide Metric, Inc.
SKU: FIT-18bb18
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-18bb18

Reliable flow control valve for hydraulic systems, with carbon steel construction and compatibility with various pressure specs.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Male Stud Non Return Valve with Elastomer Seal ensures reliable flow control in hydraulic systems. With a sturdy carbon steel construction and compatibility with various pressure specifications, including Extra Light Duty, Heavy Duty, and Light Duty, this valve operates at a Nominal Operating Pressure of 350 bar. Featuring precise tube diameters, thread sizes, and overall dimensions, this valve guarantees seamless installation and optimal performance in industrial settings.

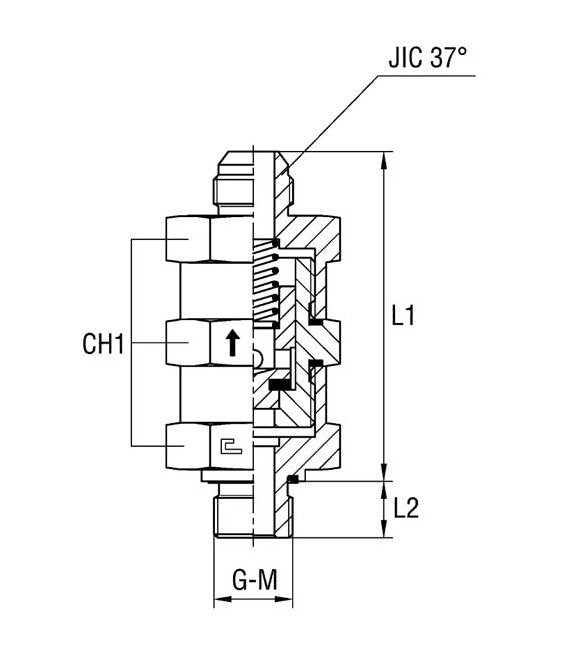

Product Specifications

Specifications Ch1

19.0 mm

Specifications Diameter Pass

2.8 mm

Specifications G Thread Size

1/8

Specifications Jic 37 Thread

7/16-20

Specifications L1

64.0 mm

Specifications L2

8.0 mm

Specifications Material

Carbon Steel

Specifications M Tube Diameter

6 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/4 in

Male Stud Non Return Valve with Elastomer Seal - BSP Parallel Thread
