Male Stud Non Return Valve with Elastomer Seal - DIN Hydraulic Check Valve
Male Stud Non Return Valve with Elastomer Seal - DIN Hydraulic Check Valve
SKU:VAL-bb88e1
Precision Male Stud Non Return Valve for hydraulic systems, DIN compliant, durable Carbon Steel construction
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - DIN Hydraulic Check Valve
$39.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - DIN Hydraulic Check Valve
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Male Stud Non Return Valve with Elastomer Seal is a precision-engineered hydraulic check valve designed for Extra Light Duty, Heavy Duty, and Light Duty applications. With a Nominal Operating Pressure of 350 bar, this valve ensures reliable performance. Featuring Carbon Steel construction, this valve is durable and robust, suitable for various hydraulic systems. The valve's Metric Parallel Thread and DIN standard compliance make it ideal for precise hydraulic control in industrial settings.

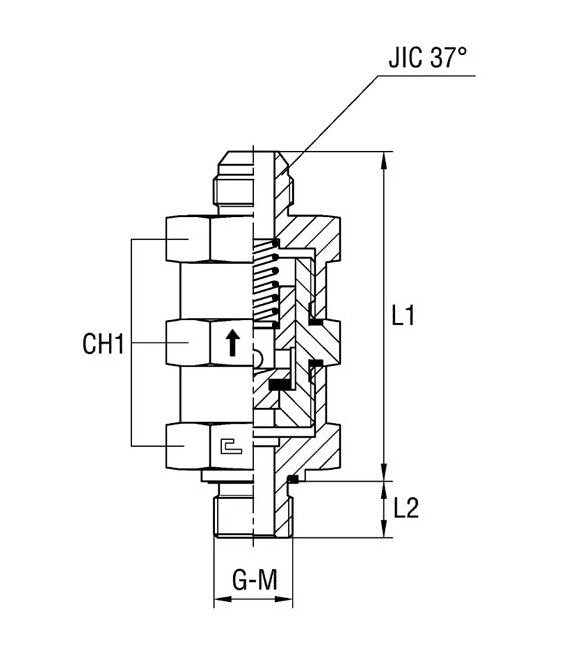

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
27x2
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
Category 6
Male Stud Non Return Valve with Elastomer Seal Thread Metric Parallel
