Male Stud Non Return Valve with Elastomer Seal - Metric Parallel

Name: Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
Brand: World Wide Metric, Inc.
SKU: FIT-4d8258
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-4d8258

Premium Male Stud Non Return Valve with Elastomer Seal for hydraulic systems - High Pressure, Durable Design

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

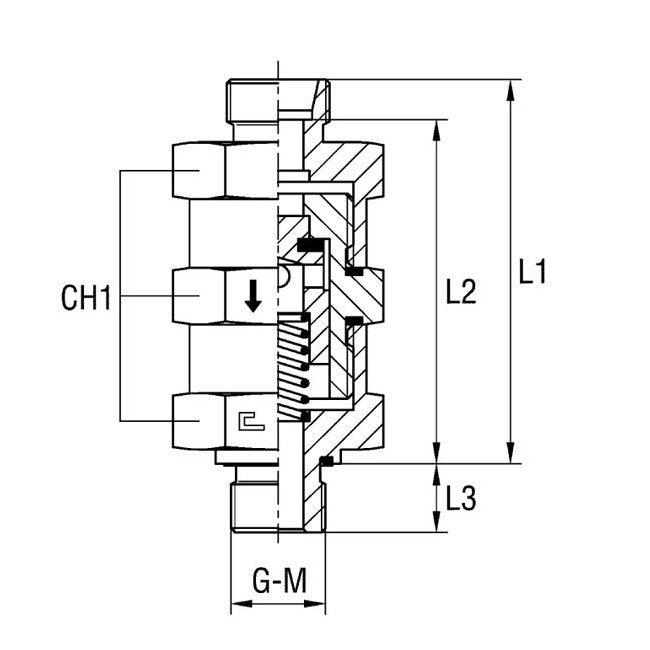

The Male Stud Non Return Valve with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 160 bar. Made of high-quality carbon steel, this valve ensures reliability and durability. With a tube diameter of 22mm and precise M-thread size of 26x1.5, it offers seamless installation and efficient performance. The compact design, measuring at L1: 83mm, L2: 75.5mm, L3: 16.0mm, and CH1: 50mm, makes it ideal for hydraulic systems requiring precision and control. This valve, with a pass diameter of 18mm, is a versatile solution for hydraulic systems in various industries.

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

18 mm

Specifications L1

83 mm

Specifications L2

75.5 mm

Specifications L3

16.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

26x1.5

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Tube Diameter

22 mm

Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
