Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
SKU:FIT-d2b591
Ensure secure flow control with the Male Stud Non Return Valve - Metric Parallel. Durable stainless steel construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Claim Your Seller Account
Male Stud Non Return Valve with Elastomer Seal - Metric Parallel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

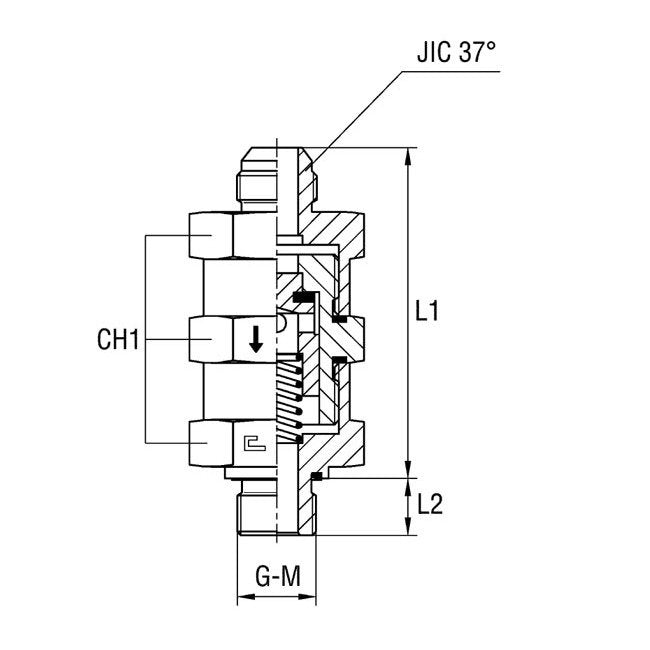

The Male Stud Non Return Valve with Elastomer Seal delivers reliable performance in hydraulic systems. With options for Extra Light Duty, Heavy Duty, and Light Duty pressure ratings, this valve is adaptable to diverse applications. Operating at a nominal pressure of 350 bar, constructed from durable stainless steel, and featuring precise measurements like Tube Diameters of 8mm / 5/16 in and Thread Size of 12x1.5, this valve ensures secure flow control and longevity. Meeting stringent industry standards, this valve is a robust choice for hydraulic systems in various sectors.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
64.0 mm
Specifications L2
8.0 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
